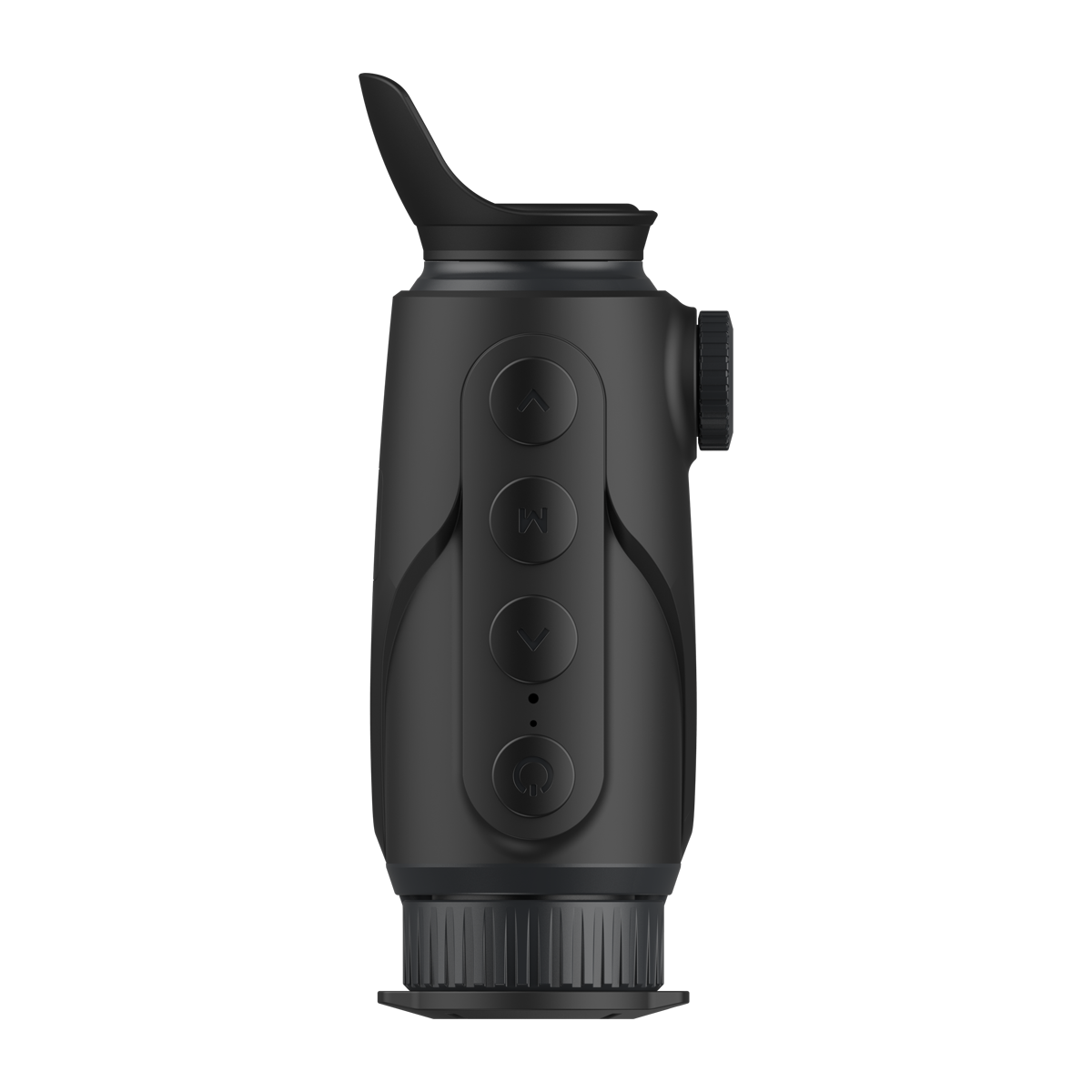

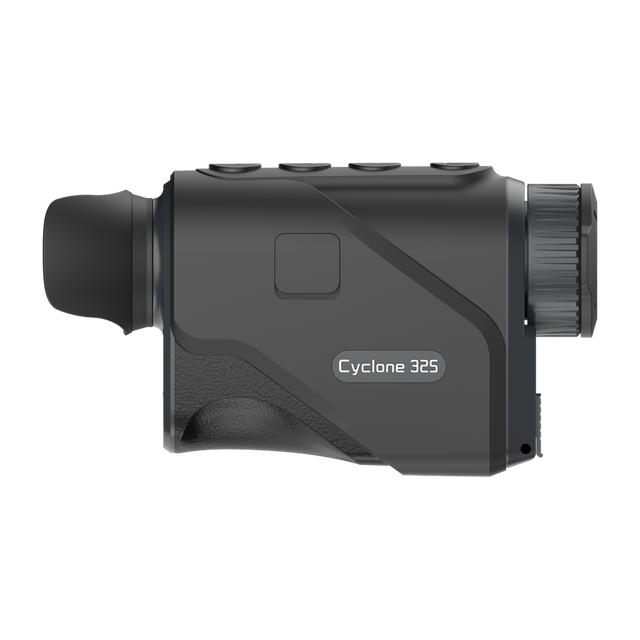

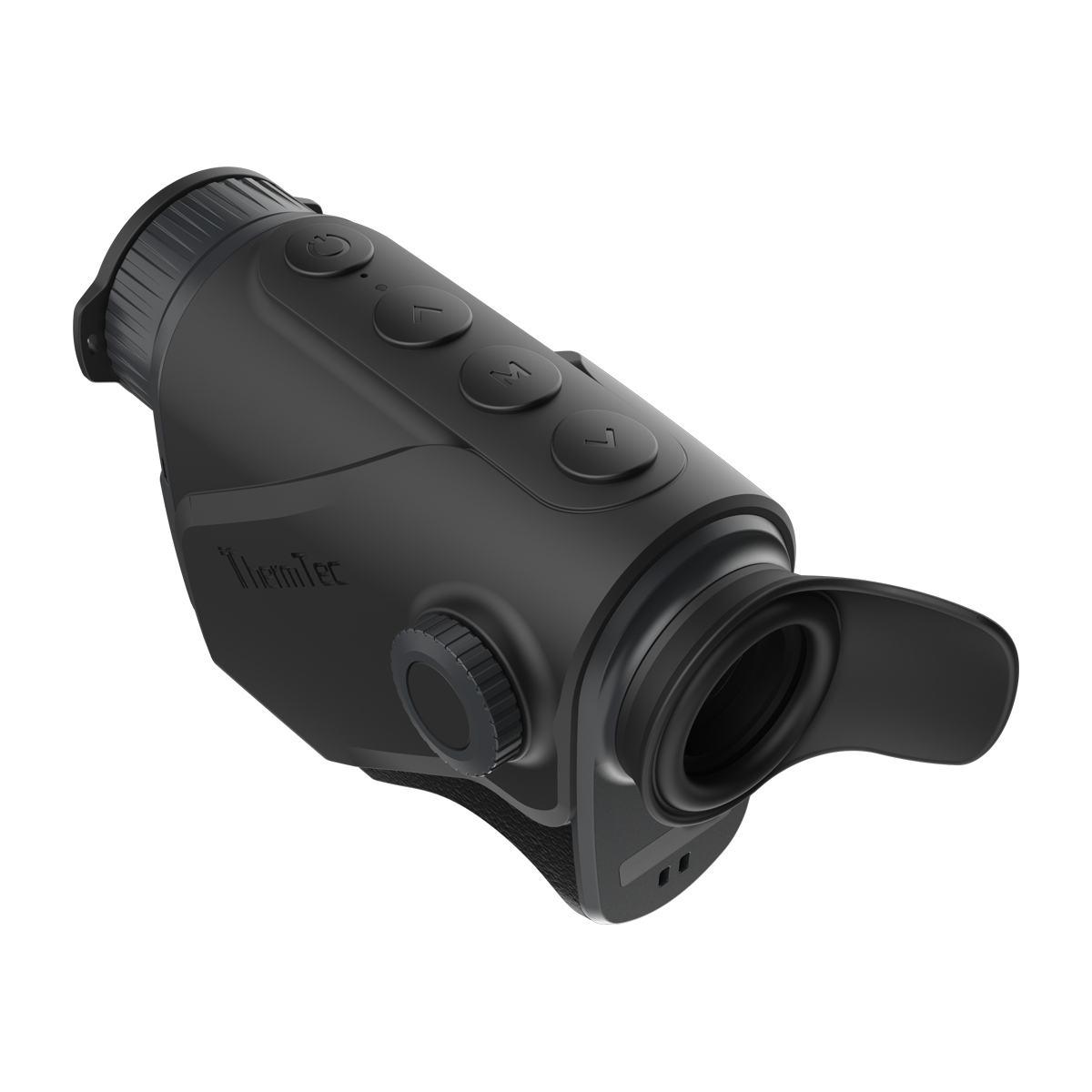

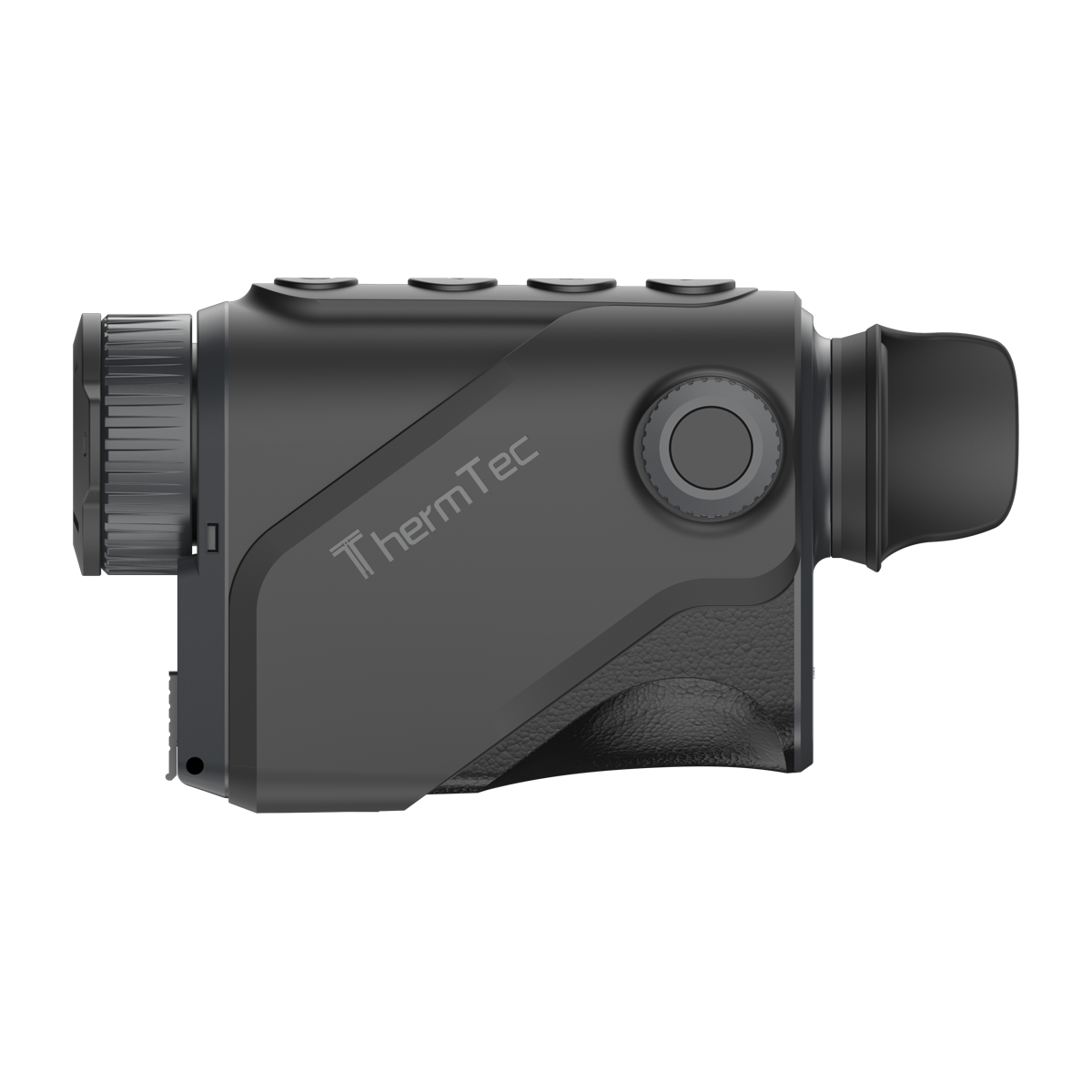

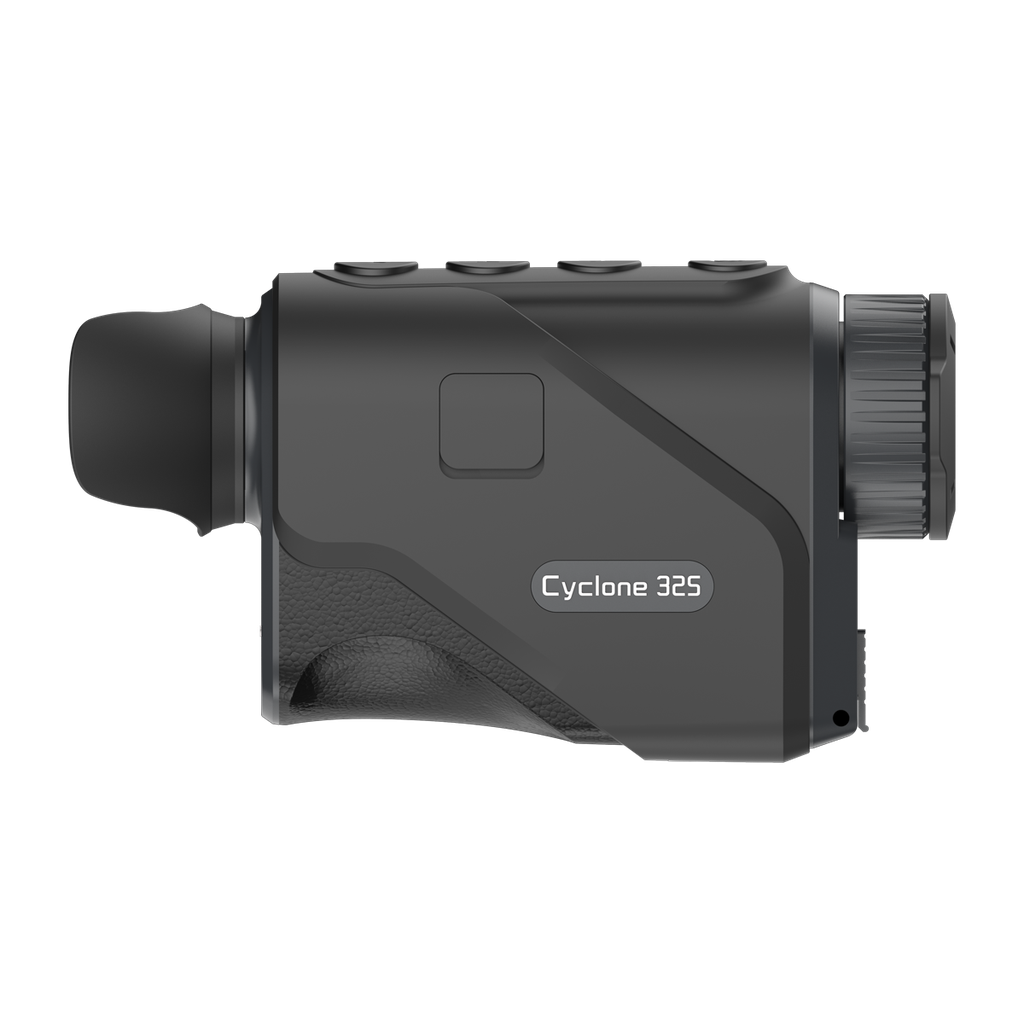

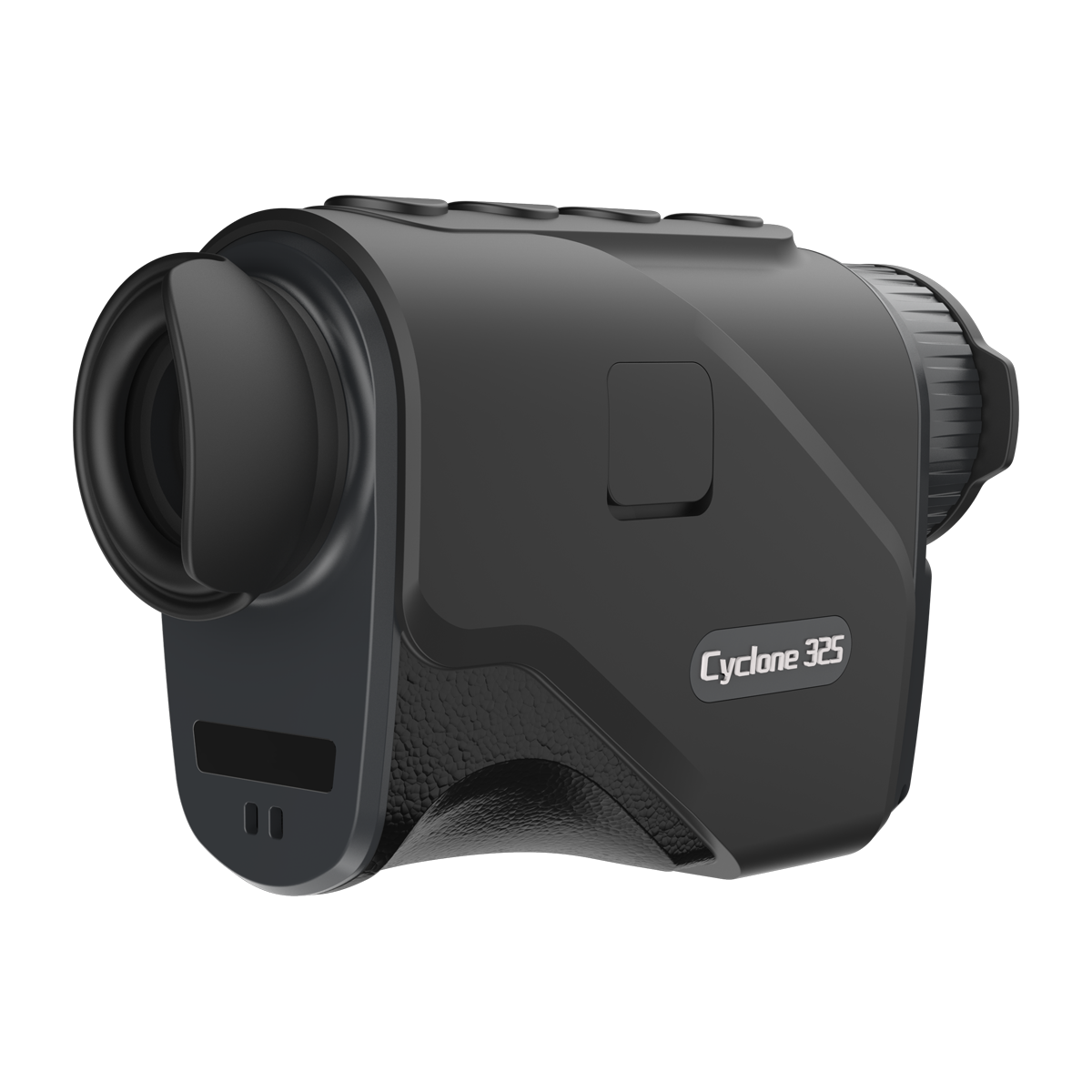

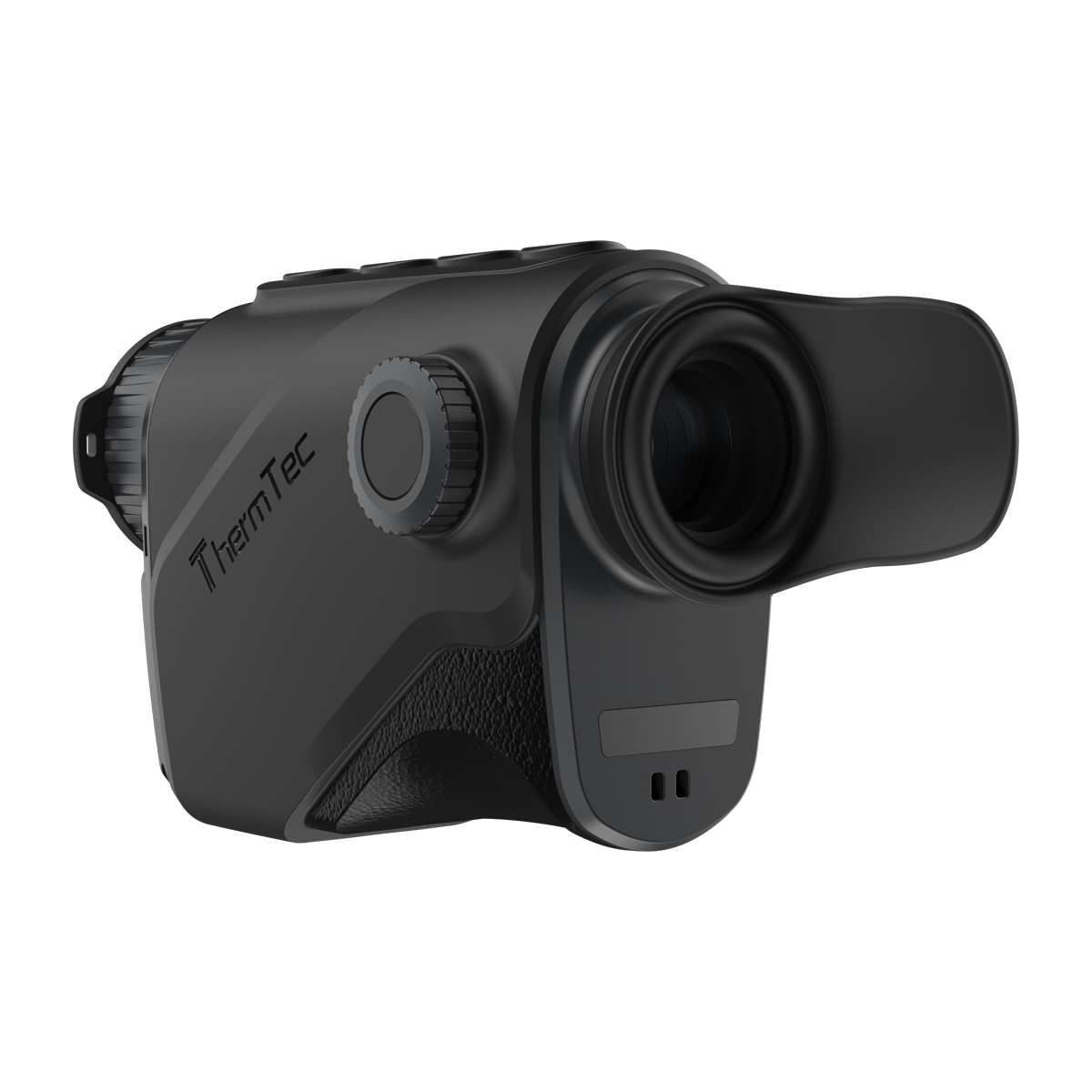

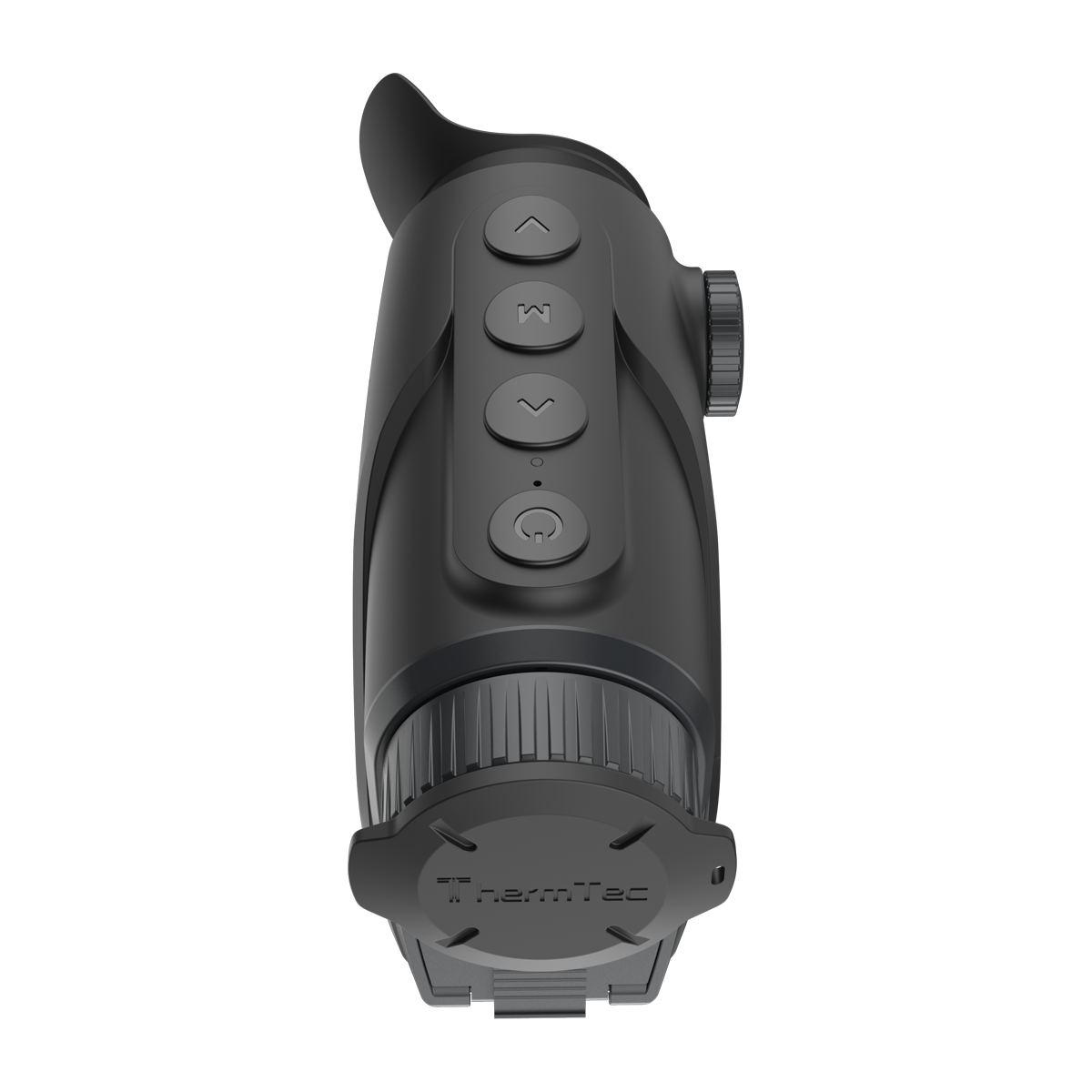

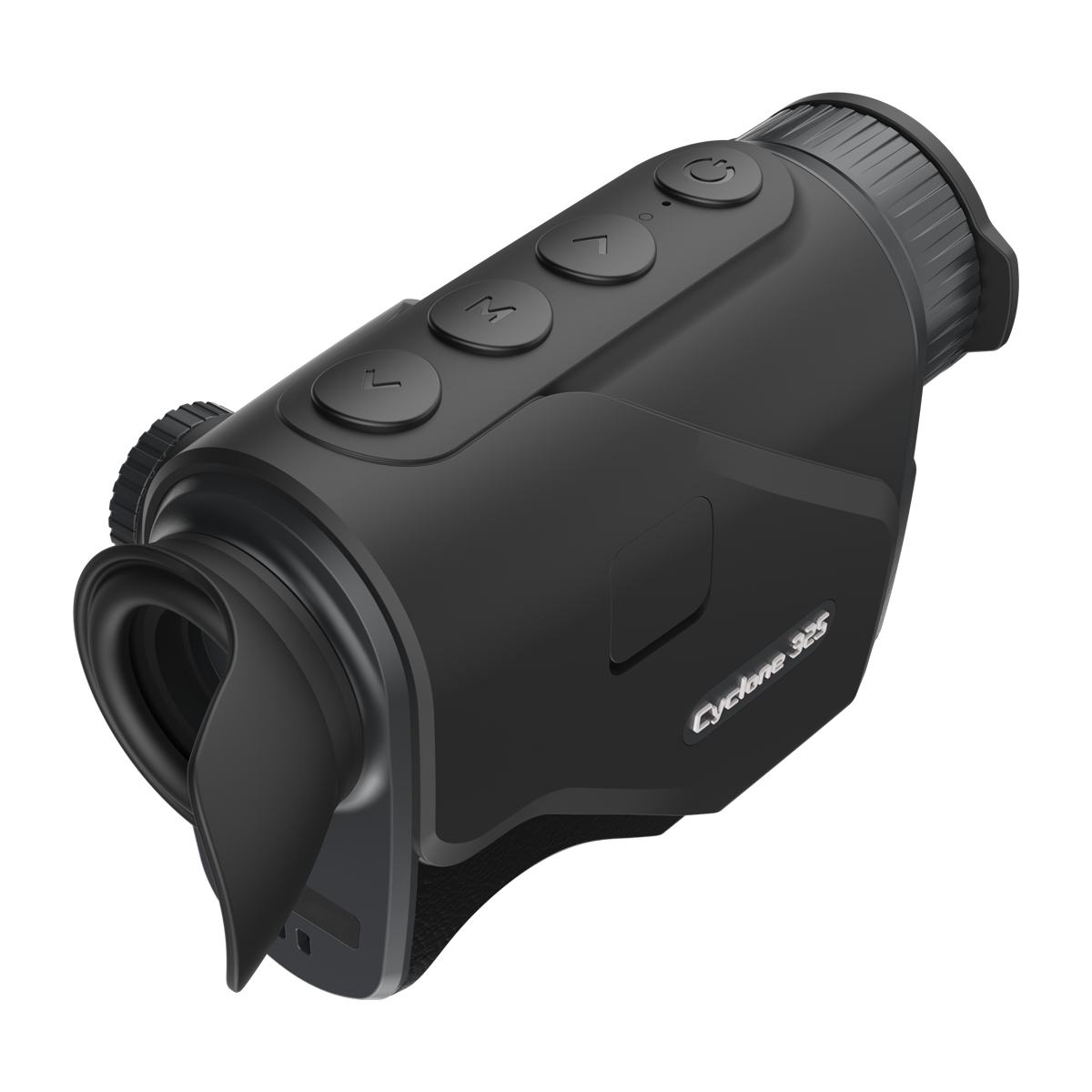

ThermTec Cyclone 325 Thermal Monocular
Not Available Online - Please See Your Local Stockist
Find Your StoreThermTec Cyclone 325 Thermal Monocular Highlights
Explore thermal imaging with the ThermTec Cyclone 325 thermal monocular, featuring multi-target ranging, 20-hour battery life and IP67 rating.
Description
Description
Cyclone 325 is a compact and lightweight handheld thermal imaging monocular for short and medium-range observations. Features a NETD <20mK detector that delivers excellent image quality. AI self-learning algorithms that provide increasingly stable target image quality. With advanced features such as multi-target ranging, 20-hour battery life, 3-second fast startup, etc., it is an excellent entry-level choice to explore the world of thermal imaging.
Key Features
Key Features
Compare This Range
| Specification | ThermTec Cyclone 325 Thermal Monocular | ThermTec Cyclone 315 Thermal Monocular | ThermTec Cyclone 625 Thermal Monocular |
|---|---|---|---|
| Resolution | 384x288 | 384x288 | 640x512 |
| Pixel pitch | 12µm | 12µm | 12µm |
| NETD | 20mK@300k | 20mK@300k | 20mK@300k |
| Spectral range | 8-14µm | 8-14µm | 8-14µm |
| Frame rate | 50Hz | 50Hz | 50Hz |
| Detection range | 1300m | 750m | 1300m |
| Objective lens | 25mm/F1.0 | 15mm/F1.0 | 25mm/F1.0 |
| Field of view | 10.5° x 7.9° | 17.5°x13.1° | 17.5° x 14° |
| / m @100m | 18.4m×13.8m | 30.7m x 23.0m | 30.8x24.6 |
| Magnification | 2.4x | 1.4x | 1.4x |
| Digital zoom | 1x,2x,4x | 1x,2x,4x | 1x,2x,4x |
| Eye relief | 20mm | 20mm | 20mm |
| Exit pupil | 6mm | 6mm | 6mm |
| Diopter | ±5D | ±5D | ±5D |
| Type | AMOLED | AMOLED | AMOLED |
| Display Resolution | 1024x768 | 1024x768 | 1024x768 |
| Display size | 0.39 inch | 0.39 inch | 0.39 inch |
| Color palette | 6 | 6 | 6 |
| Image mode | Forest/Target/Outline | Forest/Target/Outline | Forest/Target/Outline |
| Photo/video playback | Yes | Yes | Yes |
| Language | Multiple-languages | Multiple-languages | Multiple-languages |
| Inbuilt Memory | 32GB | 32GB | 32GB |
| Audio | Yes | Yes | Yes |
| Calibration | Auto/Manual | Auto/Manual | Auto/Manual |
| PIP | Yes | Yes | Yes |
| AI Distance Measurement | Yes | Yes | Yes |
| Heat Track | Yes | Yes | Yes |
| OSD Recording | Yes | Yes | Yes |
| Internal battery | Replaceable and Rechargeable Li-ion Battery (18650x1) | Replaceable and Rechargeable Li-ion Battery (18650x1) | Replaceable and Rechargeable Li-ion Battery (18650x1) |
| Battery life | 10h | 10h | 8h |
| Type-C | Supports battery charging, data transfer | Supports battery charging, data transfer | Battery Charge/Data transfer |
| Hotspot | Yes, App remote control | Yes, App remote control | Yes, App remote control |
| Working temperature | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Protection Level | IP67 | IP67 | IP67 |
| Weight | 261g (w/o battery) | 255g (w/o battery) | 261g (without battery) |
| Dimension | 135*76*54mm | 139*76*54mm | 136(L)×76(W)×54(H)mm |
| External Cable | USB cable | USB cable | USB cable |
| Other Accessories | Non-dust cloth and etc. | Non-dust cloth and etc. | Lens cloth, charger, battery, etc. |
| Burn prevention | — | — | Yes |
