ThermTec  |  SKU: OPTT-VENTUS335L

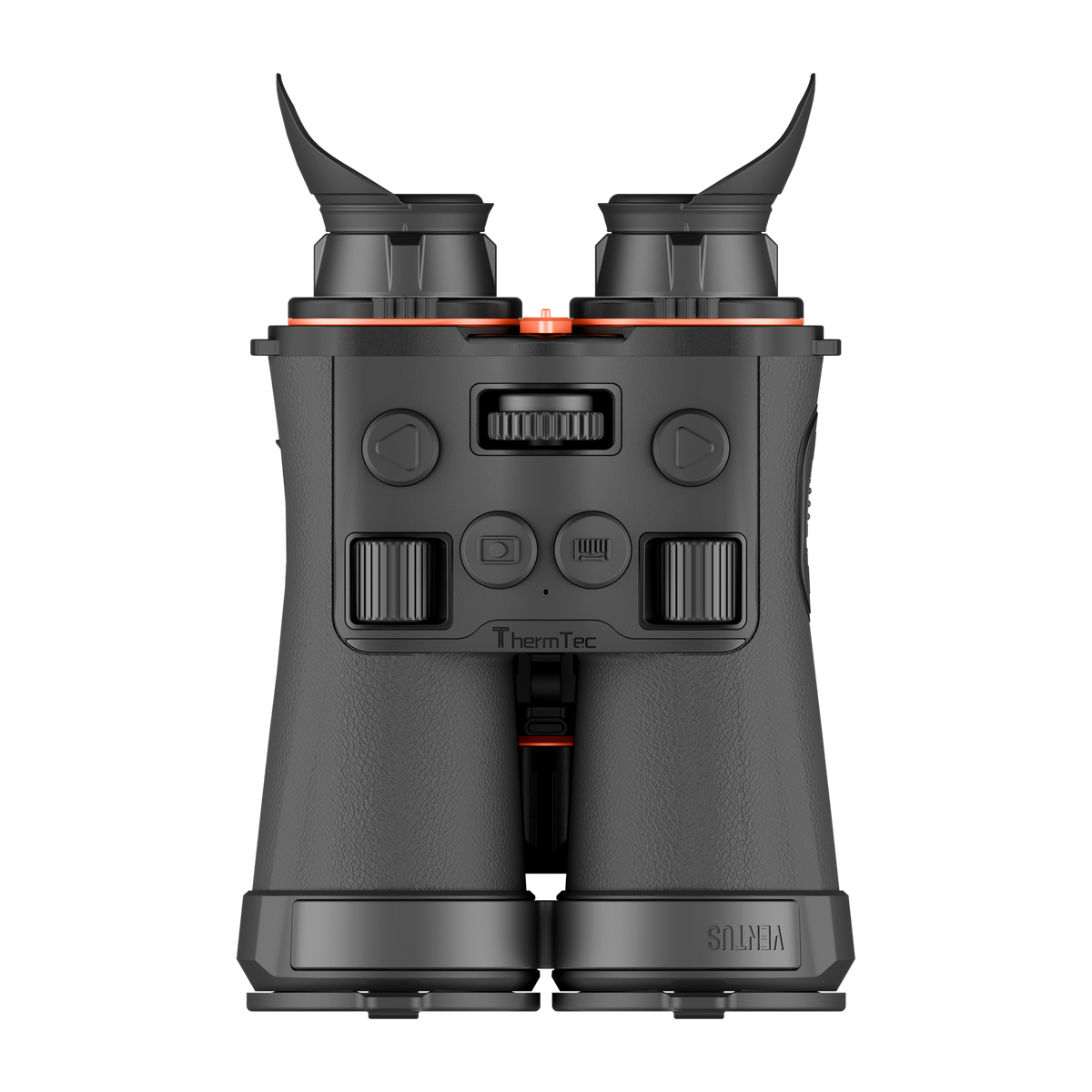

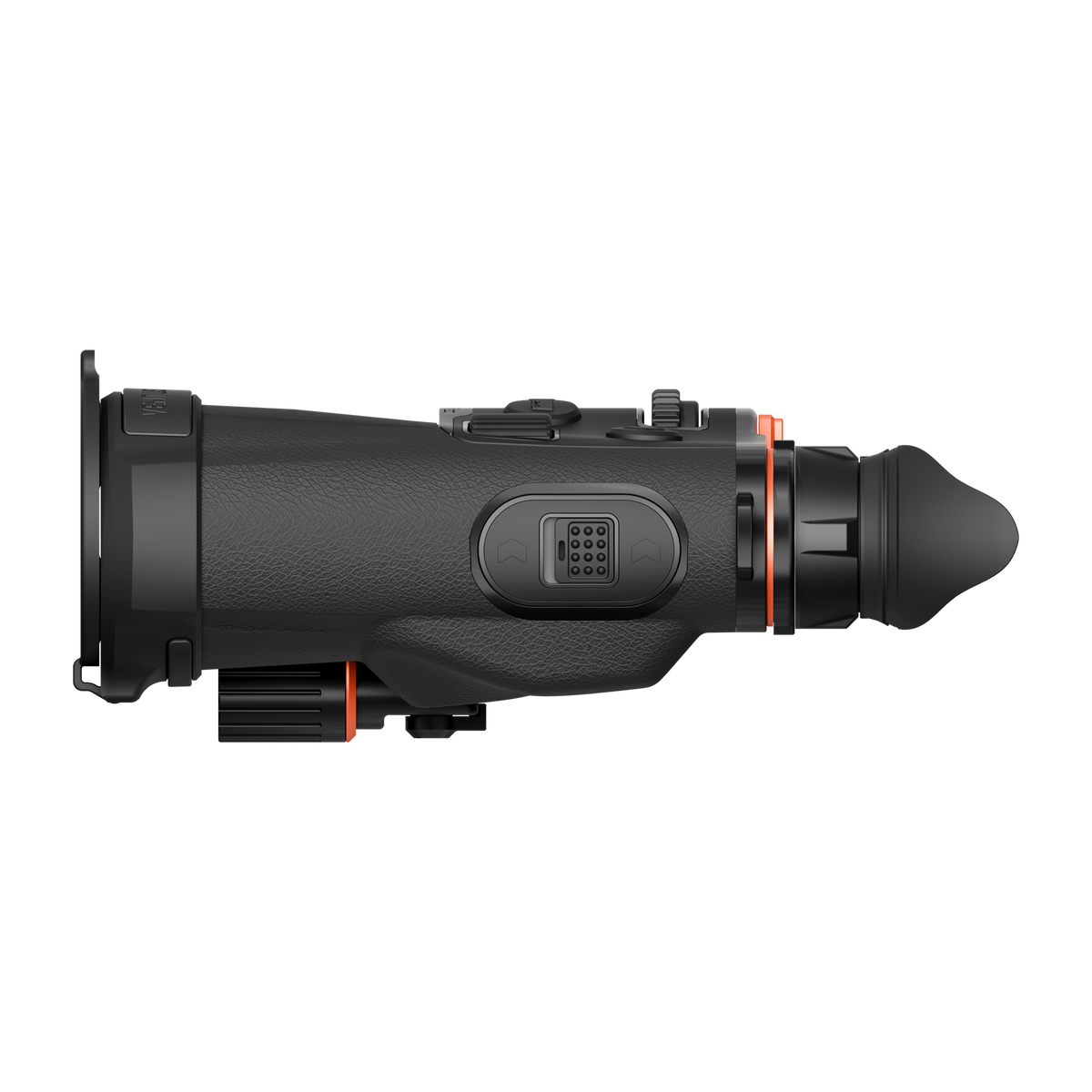

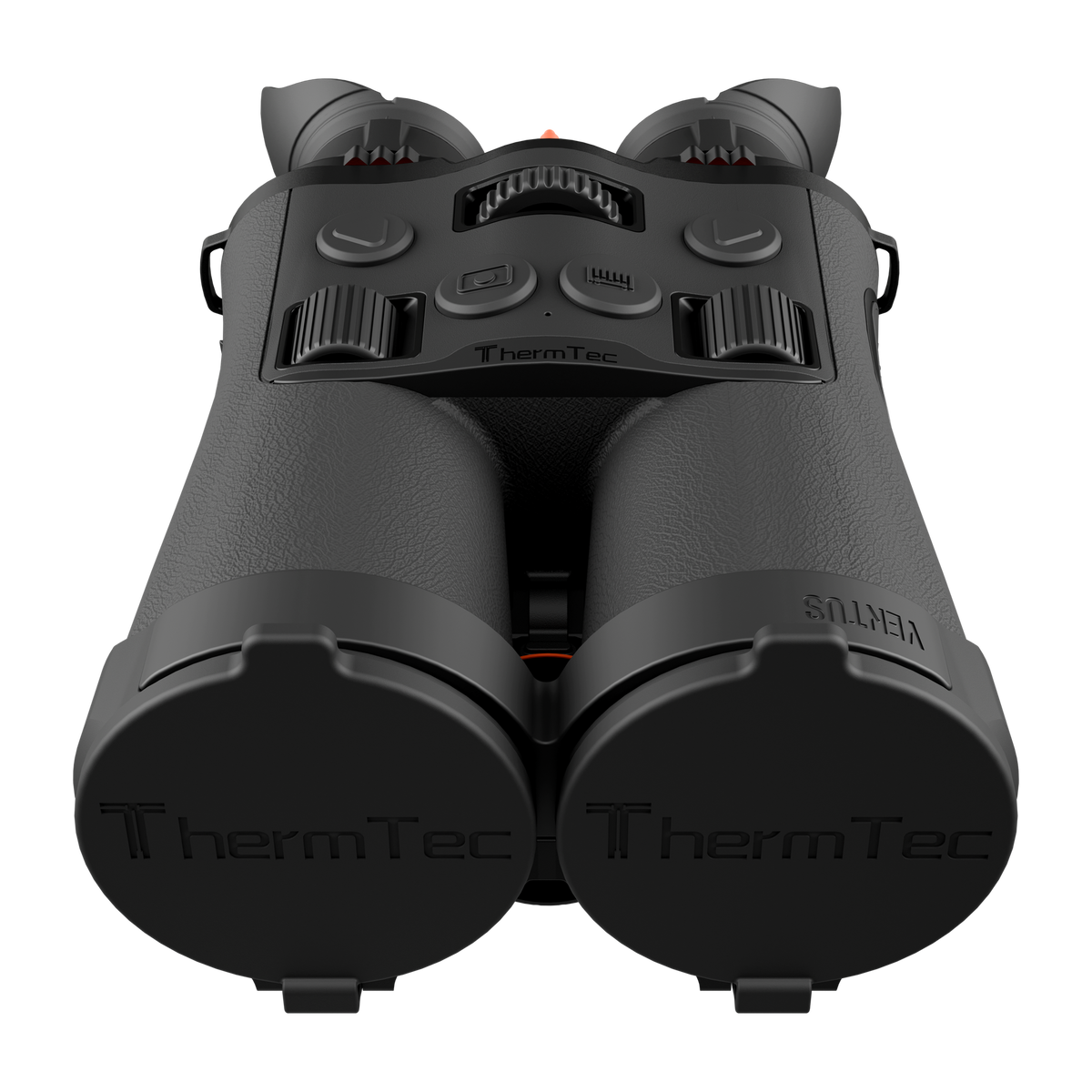

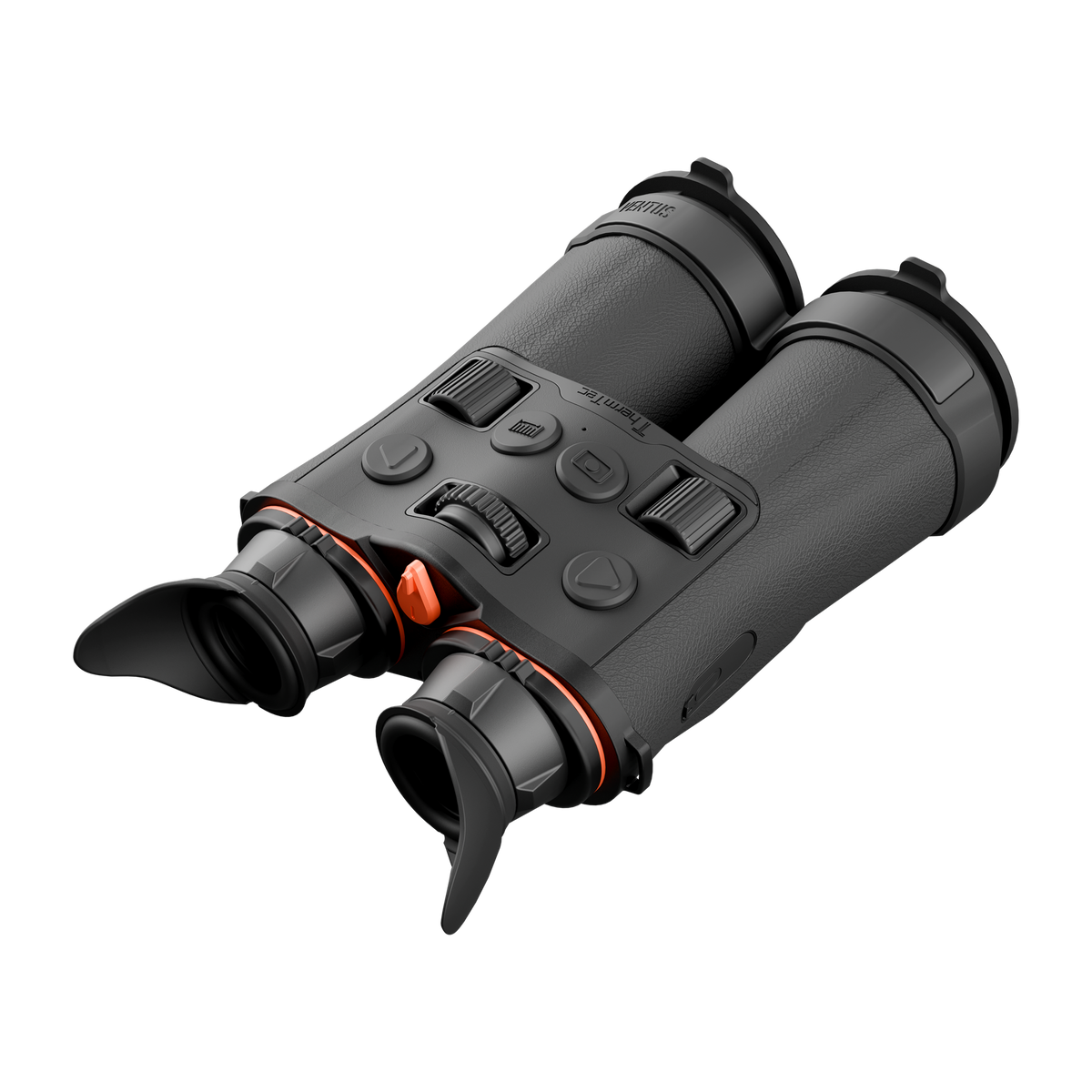

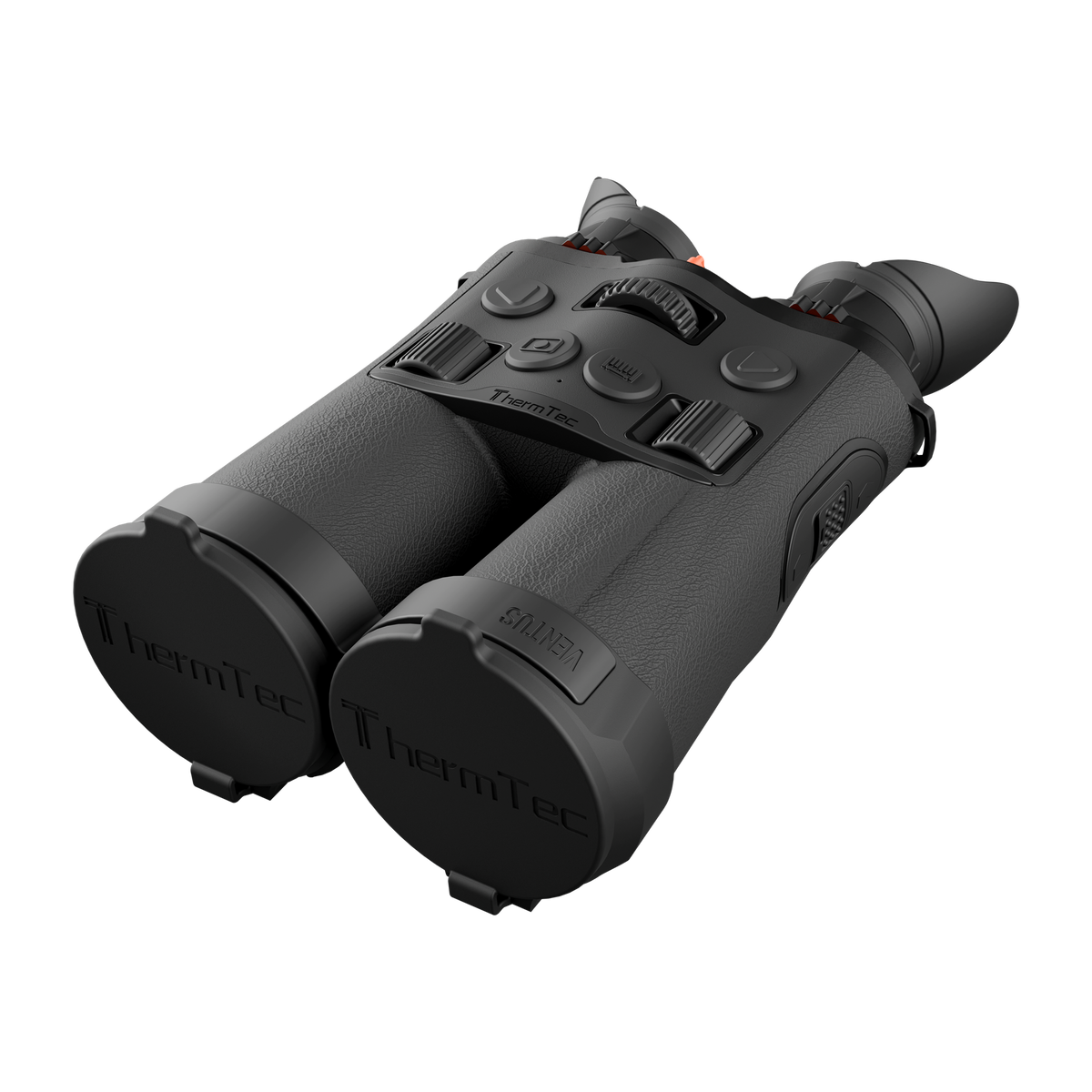

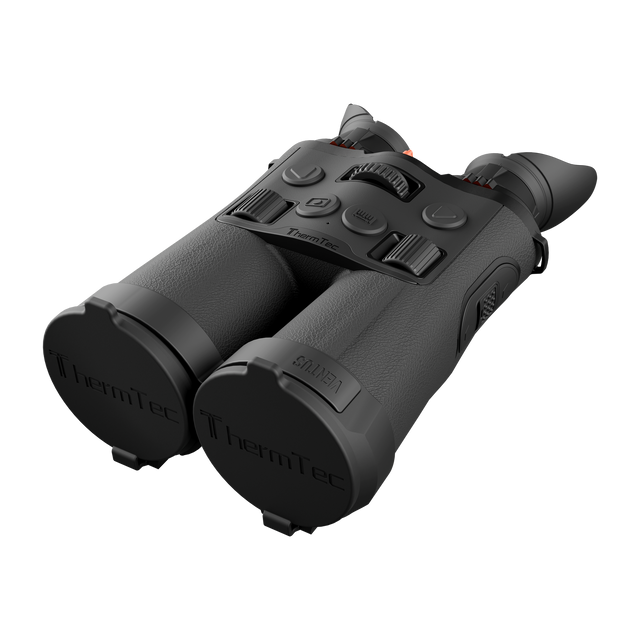

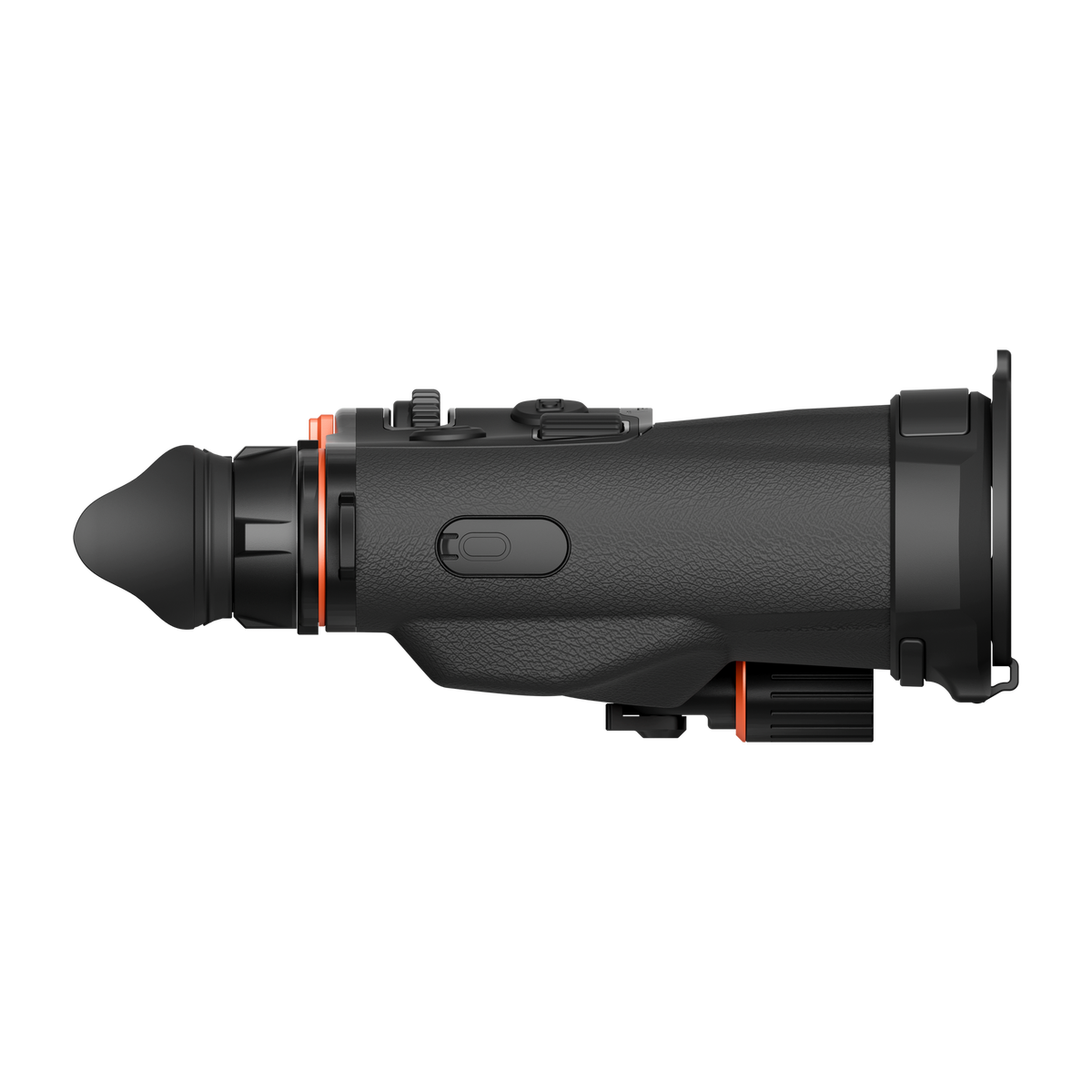

ThermTec Ventus 335L Multi-Spectrum Binoculars

$3,299.00 AUD
Tax included Shipping calculated at checkout.
View Technical Specifications

Not Available Online - Please See Your Local Stockist

Find Your Store

ThermTec Ventus 335L Multi-Spectrum Binoculars Highlights

The ThermTec Ventus 335L multi-spectrum binoculars pair a 384x288 thermal sensor with a 4K day/night camera, 1000m rangefinder and 1800m detection. Shop now.

Description

The Ventus 335L combines a 384×288 thermal sensor with NETD <15 mK and a 4K UHD (3840×2160) CMOS sensor, supported by switchable 850 nm and 940 nm IR illumination, to deliver clear imaging across day and night. An exclusive hybrid picture-in-picture display, EIS image stabilisation and ThermTec AI Calibration keep the view steady and detailed, while the integrated laser rangefinder measures to 1000 m and detection reaches 1800 m. Two replaceable batteries provide up to 7 hours of use, and the ergonomic one-hand dual focus design keeps observation comfortable during long sessions.

Key Features
  • Resolution: 384×288
  • pixel pitch: 12μm
  • Frame Rate:50Hz
  • Lens: 35mm
  • Replaceable Battery

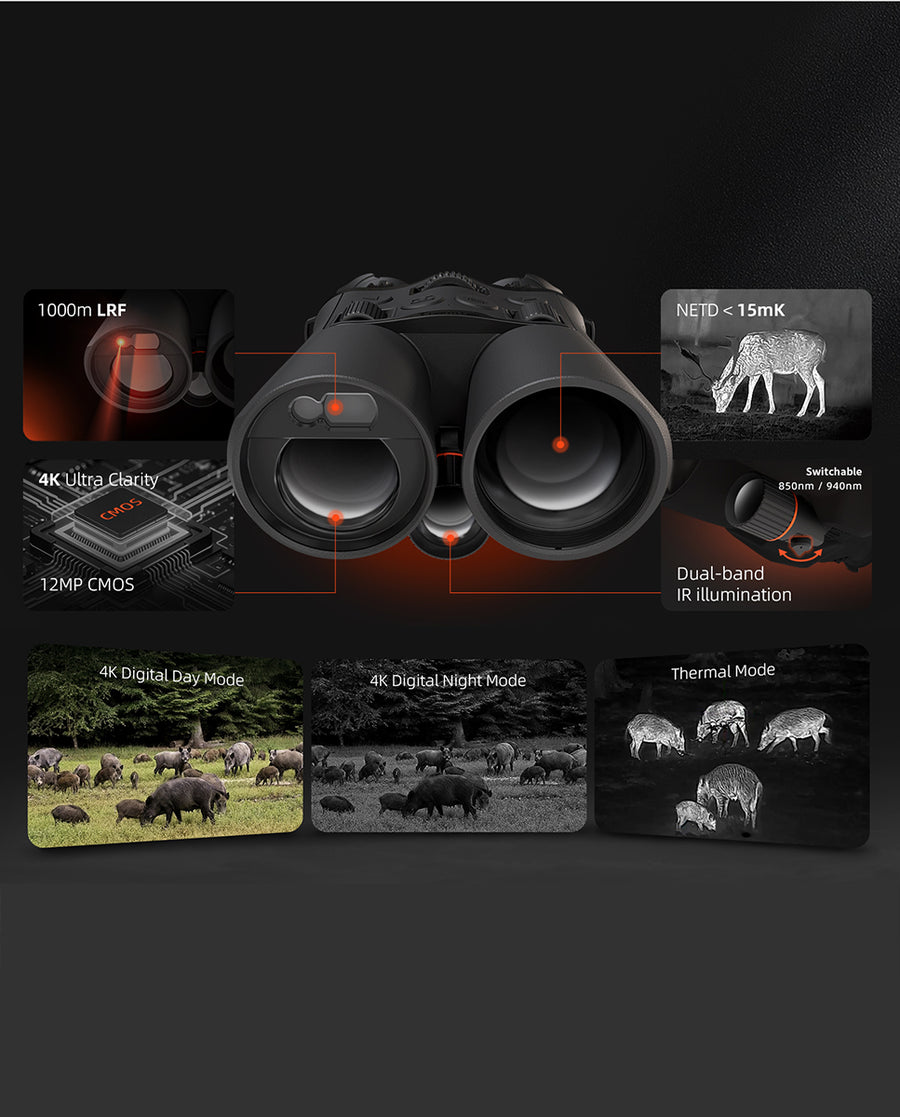

5-in-1 Integrated System

5-in-1 Integrated System

Combining NETD <15 mK thermal sensitivity, a 4K UHD CMOS sensor, dual-band 850/940 nm IR illumination and a precise laser rangefinder, it delivers confident imaging across daylight, twilight and darkness.

4K UHD Clarity

4K UHD Clarity

A 3840×2160 4K UHD sensor shown on a 1600×1200 0.5" AMOLED display delivers sharp, detailed imaging for daytime and IR night observation.

Hybrid PIP Display

Hybrid PIP Display

The exclusive hybrid picture-in-picture display gives a more versatile viewing experience, letting you keep a magnified view of your target while scanning the wider scene.

EIS Vision Stability

EIS Vision Stability

EIS-enhanced digital and thermal imaging keeps the picture steady at high magnification, up to 17.2x thermal and 30x optical.

Consistently Clear & Stable Image

Consistently Clear & Stable Image

ThermTec AI Calibration reduces shutter frequency, minimizes image freezing, and ensures stable and consistent images over changing environments.

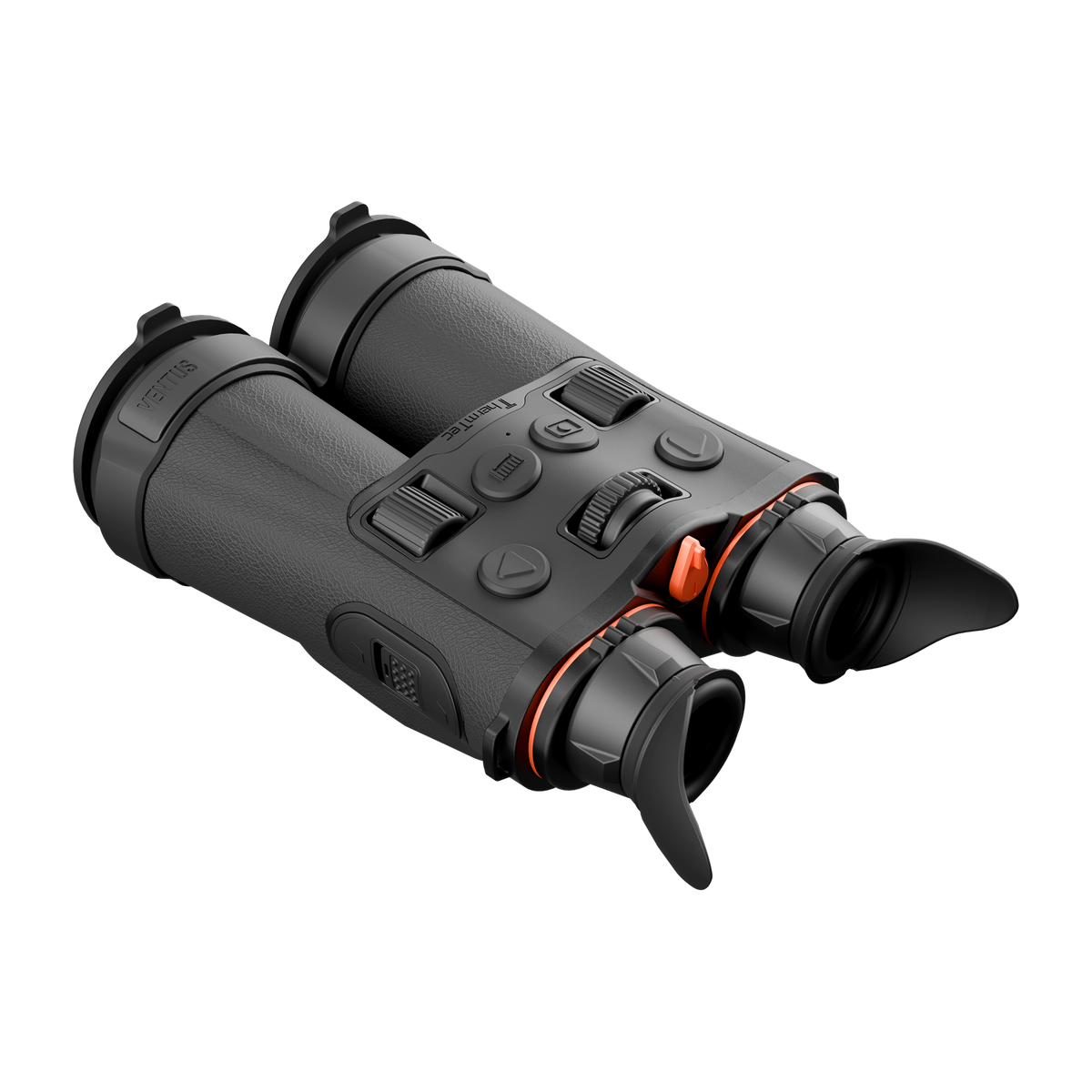

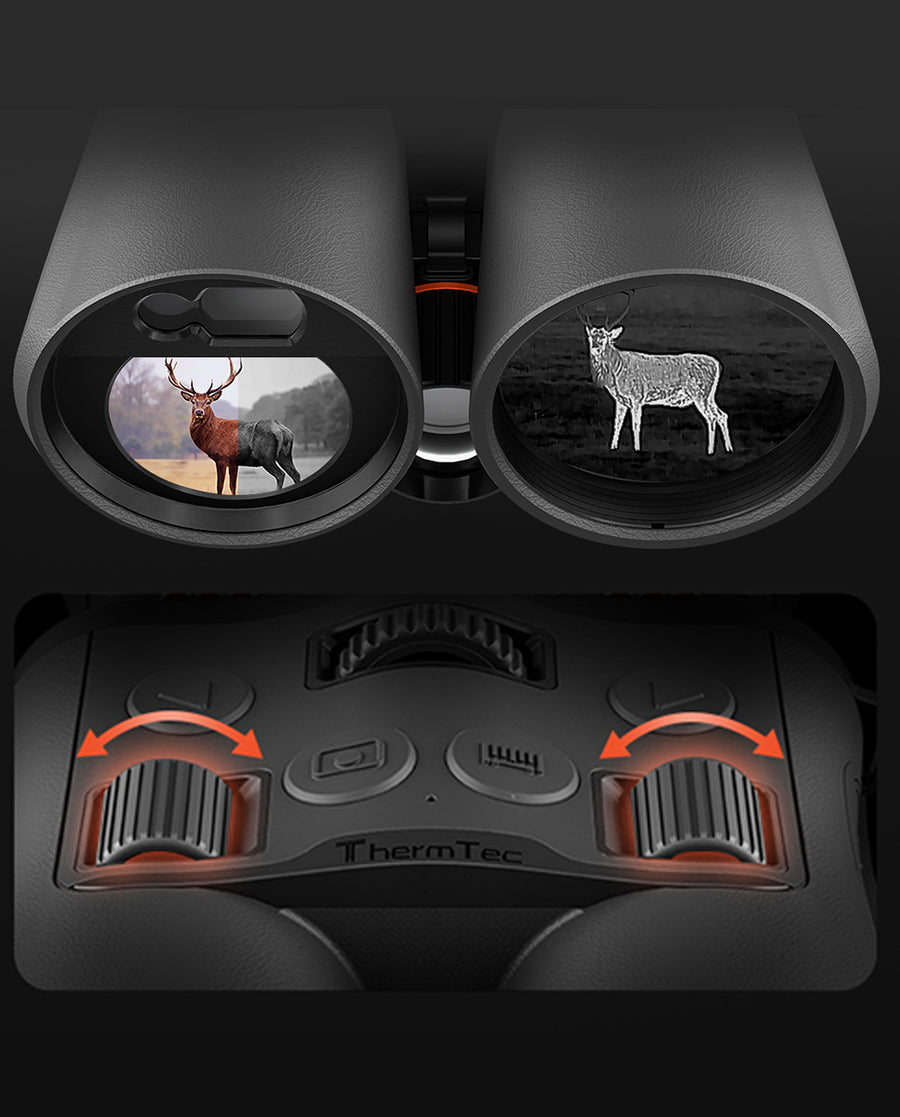

Ergonomic Operation Design

Ergonomic Operation Design

The ergonomic waist and hand support design enables dual focus wheel control with one hand, and two replaceable batteries provide up to 7 hours of use.

Compare This Range

SpecificationThermTec Ventus 335L Multi-Spectrum Binoculars ThermTec Ventus 635L Multi-Spectrum BinocularsThermTec Ventus 650L Multi-Spectrum Binoculars
Thermal Resolution384×288640×512640×512
Pixel pitch12μm12μm12μm
NETD<15mK@300K<15mK@300K<15mK@300K
Spectral range8-14μm8-14μm8-14μm
Thermal Objective lens35mm/F0.835mm/F0.950mm/F1.0
Thermal Field of View/m@100m7.5°×5.6° / 13.2×9.912.5°×10° / 21.9×17.68.8°×7.0° / 15.4×12.3
Frame rate50Hz50Hz50Hz
Thermal Magnification4.3X-17.2X(4X)2.6X-10.4X(4X)3.7X-14.8X(4X)
Detection range1800m1800m2600m
Optical Resolution3840x2160 2μm3536x3536 2μm3536x3536 2μm
Optical Field of view/m@100m8.8°×4.9° / 15.4×8.68.1°×8.1° / 14.14×14.148.1°×8.1° / 14.14×14.14
Optical Objective lens50mm/F1.450mm/F1.450mm/F1.4
IR illuminator wavelength850nm/940nm switchable850nm/940nm switchable850nm/940nm switchable
Viewing range at night850nm:400m/940nm:350m850nm:400m/940nm:350m850nm:400m/940nm:350m
Optical Magnification5X-30X(6X)4X-24X(6X)4X-24X(6X)
TypeAMOLEDAMOLEDAMOLED
Image Display Resolution1600×12001600×12001600×1200
Display size0.5 inch0.5 inch0.5 inch
Color palette666
Eye relief20mm20mm20mm
Exit pupil8mm8mm8mm
Diopter±5D±5D±5D
Interpupillary adjustment range60mm to 72mm60mm to 72mm60mm to 72mm
Image modeForest/RainyForest/RainyForest/Rainy
LRF Safety classClass 1Class 1Class 1
LRF Wavelength905nm905nm905nm
LRF Range1000m1000m1000m
LRF Accuracy±1m±1m±1m
Photo/Video playbackYesYesYes
Audio recordingYesYesYes
AzimuthYesYesYes
Digital magnetic compassYesYesYes
HotspotYesYesYes
LanguageMultiple-languageMultiple-languageMultiple-language
Storage64GB EMMC64GB EMMC64GB EMMC
PIPYesYesYes
Heat trackYesYesYes
EISYesYesYes
Local albumYesYesYes
OSD recordingYesYesYes
Burn preventionYesYesYes
Internal batteryReplaceable Li-ion battery (18650*2)Replaceable Li-ion battery (18650*2)Replaceable Li-ion battery (18650*2)
Battery life7h6h6h
Working temperature-20℃-+50℃-20℃-+50℃-20℃-+50℃
Protection levelIP67IP67IP67
Weight825g825g833g
Size164(L)x127.6(W)x73(H)mm164(L)x127.6(W)x73(H)mm164(L)x127.6(W)x73(H)mm
Mounting adapter1/4-20-UNC1/4-20-UNC1/4-20-UNC
TSR algorithm—YesYes
