ThermTec  |  SKU: OPTT-ORYX635L

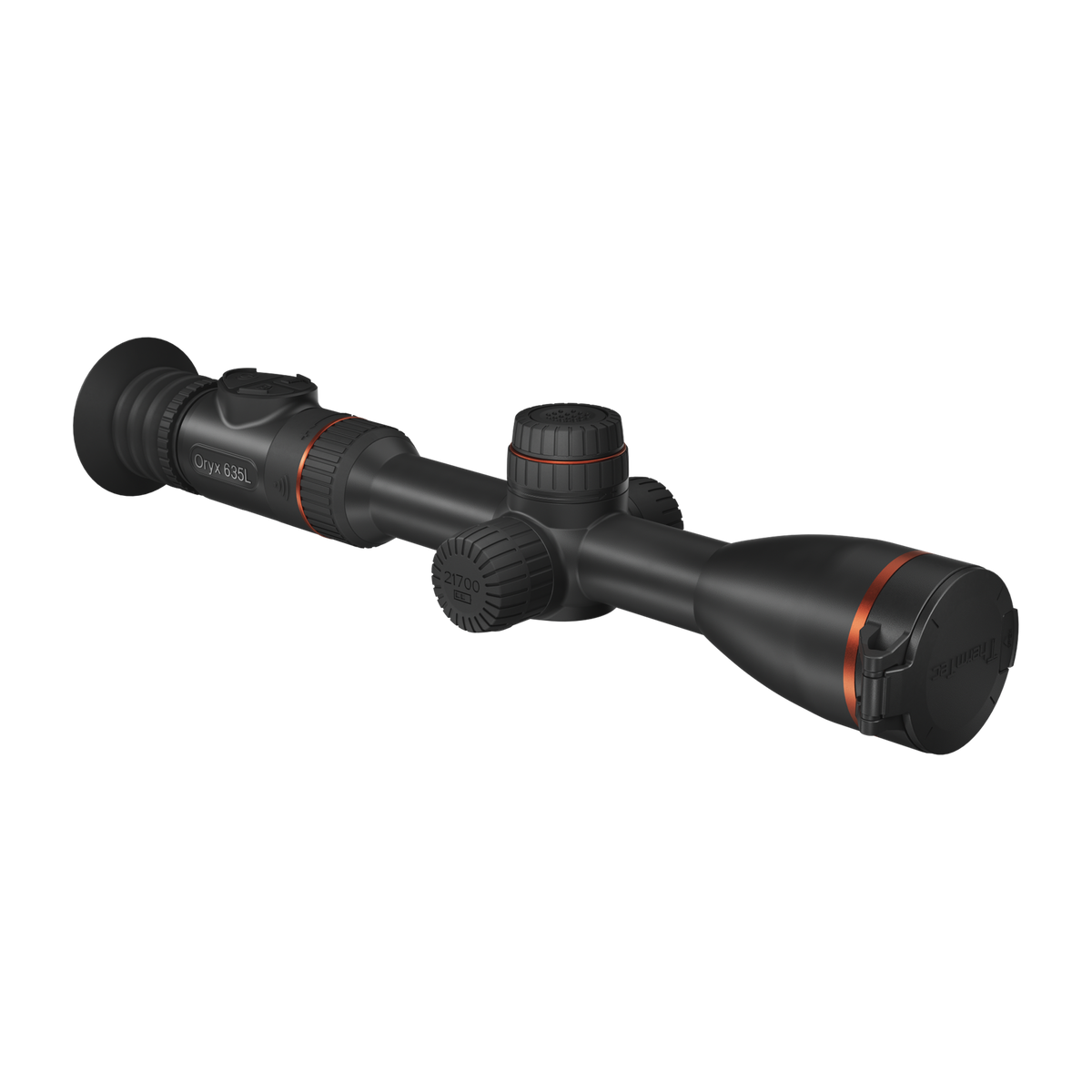

ThermTec Oryx 635L Thermal Tube Scope

$5,399.00 AUD
Tax included Shipping calculated at checkout.
View Technical Specifications

Not Available Online - Please See Your Local Stockist

Find Your Store

ThermTec Oryx 635L Thermal Tube Scope Highlights

The ThermTec Oryx 635L thermal rifle scope offers a 640x512 NETD 15mK sensor, 35mm lens, built-in rangefinder and 1800m detection range.

Description

The Oryx-L 635 is designed for versatile hunting scenarios, offering ultra-clear thermal imaging with a highly sensitive NETD ≤15mK sensor. Its vivid OLED display ensures comfortable long-term viewing, while the ThermTec AutoSight System (TASS) and built-in laser rangefinder provide smooth zoom and accurate distance measurement. With a wider field of view and intuitive Central Turret Focus System, the Oryx-L 635 is ideal for close to mid-range detection and fast target acquisition.

Key Features
  • Built-In Lens LRF
  • 2560X2560 1.0" OLED
  • Resolution: 640x512@12µm
  • NETD: ≤15mK
  • Objective Lens: 35mm/F0.8
  • Field Of View: 12.5°x10°
  • Magnification: 2.6X
  • Detection Range: 1800m
  • Digital Zoom: 1-4X smooth & rapid zoom
  • Battery Life: 8H
  • Weight: 1050±5g
  • Dimensions: 385(L)x93(W)x77(H)
    ±5
15mK Ultra Clear Image

15mK Ultra Clear Image

Equipped with a high-sensitivity thermal detector (NETD ≤15mK), the Oryx captures even the smallest temperature differences, delivering sharper, more detailed images regardless of challenging weather conditions.

Unparalleled Clarity and Details

Unparalleled Clarity and Details

Experience unparalleled clarity and detail with the high-end 2560×2560 resolution 1.03” OLED display. Designed for comfort, it reduces visual fatigue from long-time observation.

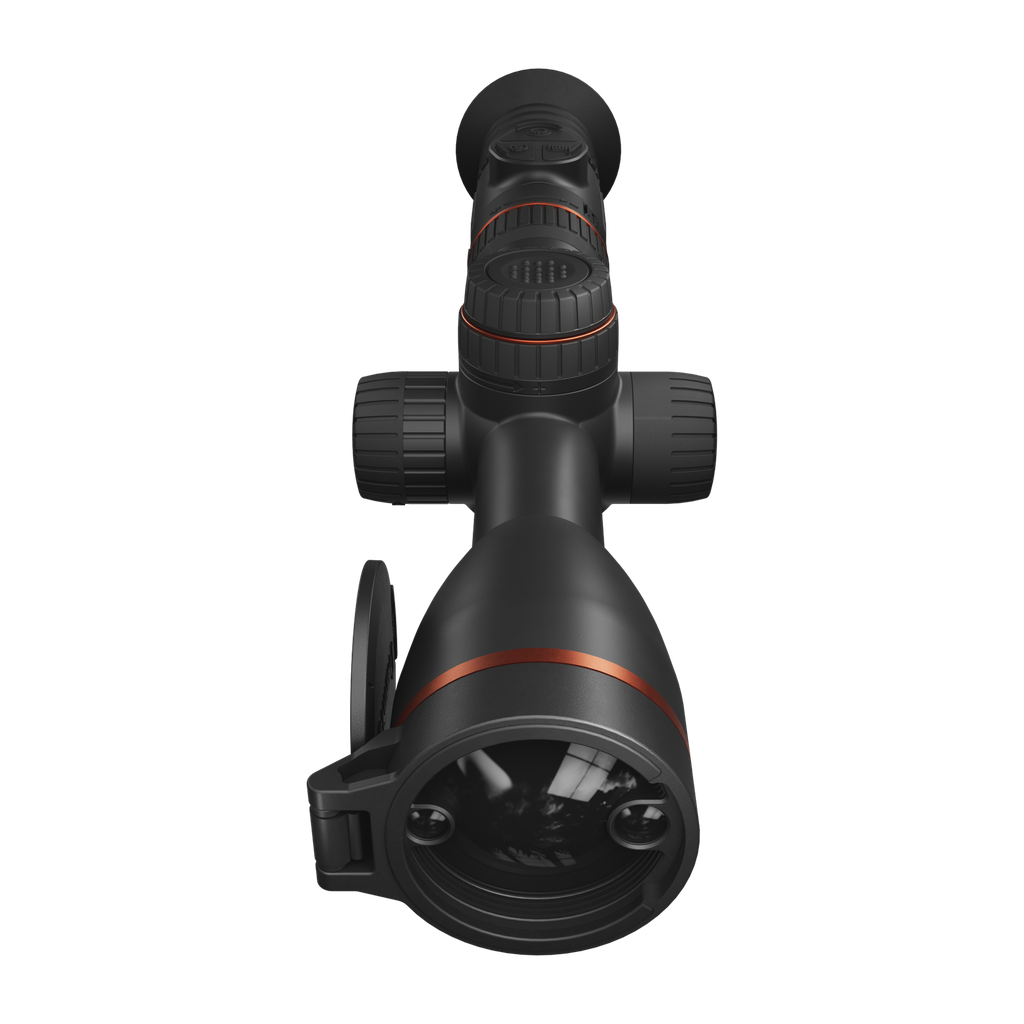

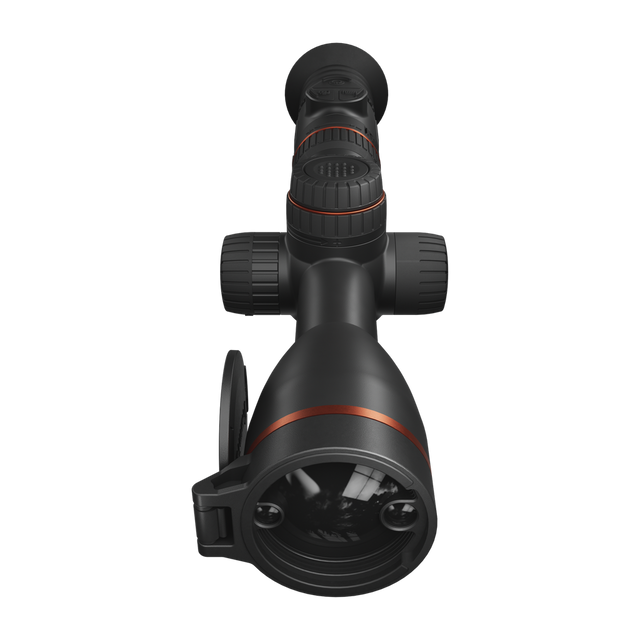

Innovative Built-in LRF Module

Innovative Built-in LRF Module

Equipped with built-in LRF module, Oryx ensures laser range-finding up to 1200 meters, ensuring precise distance measurements while maintaining a sleek and elegant design.

Central Turret Focus

Central Turret Focus

Oryx's innovative central turret focus system makes focusing easier and more comfortable compared to traditional lens-mounted focus designs.

Rail Mount Alignment System

Rail Mount Alignment System

The dedicated Rail Mount design automatically aligns with the rifle rail to ensure precise horizontal positioning.

8 Hours Continuous Operation

8 Hours Continuous Operation

Offer up to 8 hours of runtime on a 21700 replaceable battery, even with its high-resolution 2560×2560 OLED display. The horizontal placement keeps your view clear and adds a sleek, day scope-like look.

Compare This Range

SpecificationThermTec Oryx 635L Thermal Tube Scope ThermTec Oryx 650L Thermal Tube Scope
TypeUncooledUncooled
Resolution640x512640x512
Pixel pitch12µm12µm
NETD≤15mK≤15mK
Spectral range8-14µm8-14µm
Frame rate50Hz50Hz
Detection range1800m2600m
Objective lens35mm F0.850mm F0.9
Field of view12.5°×10°8.8°×7.0°
/m@100m21.9×17.615.4×12.3
Magnification2.6x3.7x
Digital zoom1x-4x1x-4x
Eye relief60mm60mm
Exit pupil6mm6mm
Diopter±5D±5D
Reticle77
Reticle color66
Display resolution2560×25602560×2560
Display size1.03 inch1.03 inch
Color palette66
Max. recoil power on rifled weapon6000J6000J
Mounting brackets on weaponStandard 30mm ringsStandard 30mm rings
RAVYesYes
Audio recordingYesYes
Manual zeroingYesYes
Zeroing profiles66
Freeze zeroingYesYes
Picture-in-pictureYesYes
Laser ranging1200m1200m
Ballistic calculatorYesYes
Image calibrationManual/AutoManual/Auto
Photo/video playbackYes,1280*1024Yes,1280*1024
Inbuilt memory64GB64GB
Type CData transfer/Battery chargeData transfer/Battery charge
HotspotYesYes
Battery typeReplaceable 1*21700 6000mAhReplaceable 1*21700 6000mAh
Battery life8h8h
Operating temperature-20°C to +50°C-20°C to +50°C
IP ratingIP67IP67
Weight1050±5g1100±5g
Size385(L)x93(W)x77(H)±5mm397(L)x87(W)x74(H)mm
