ThermTec  |  SKU: OPTT-VENTUS635L

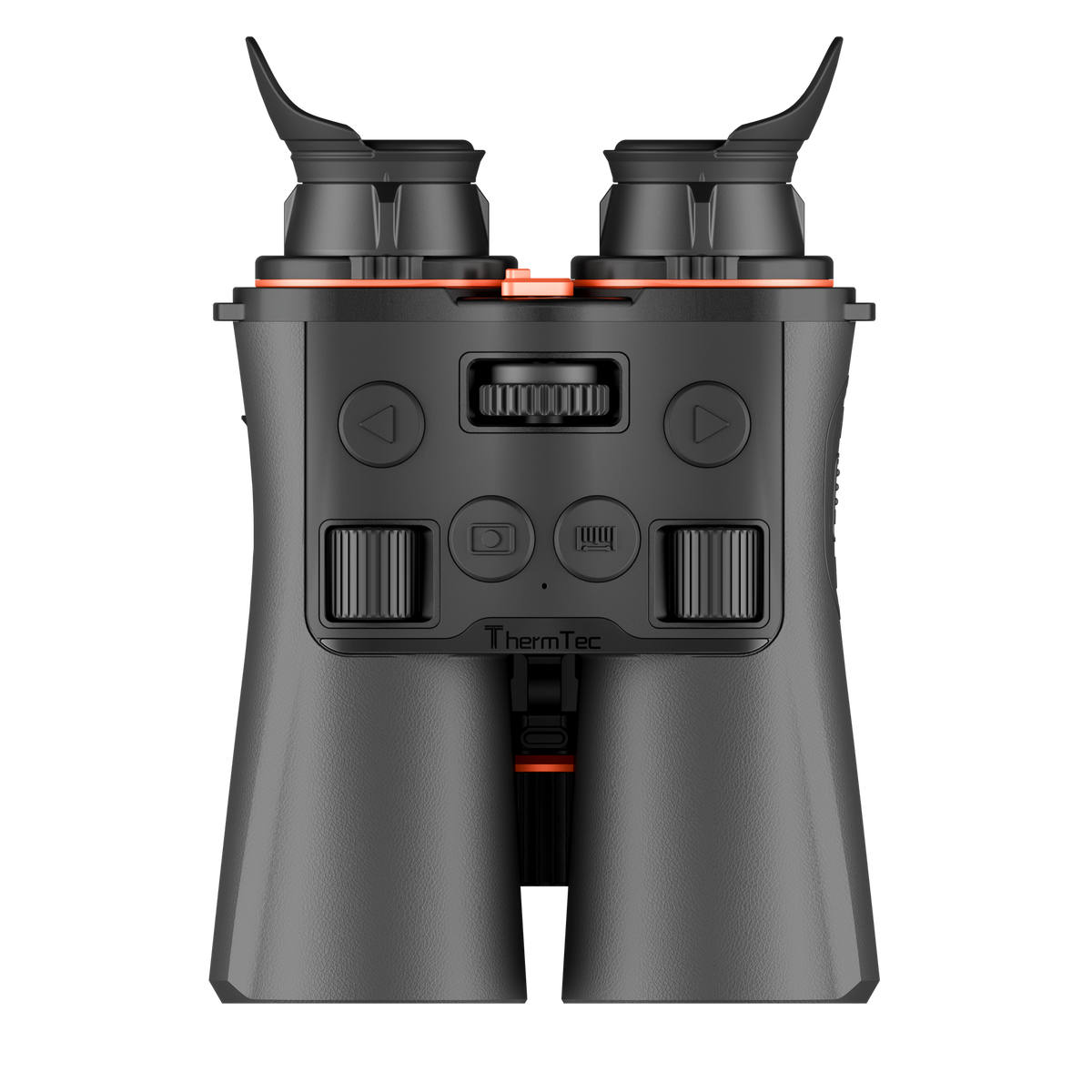

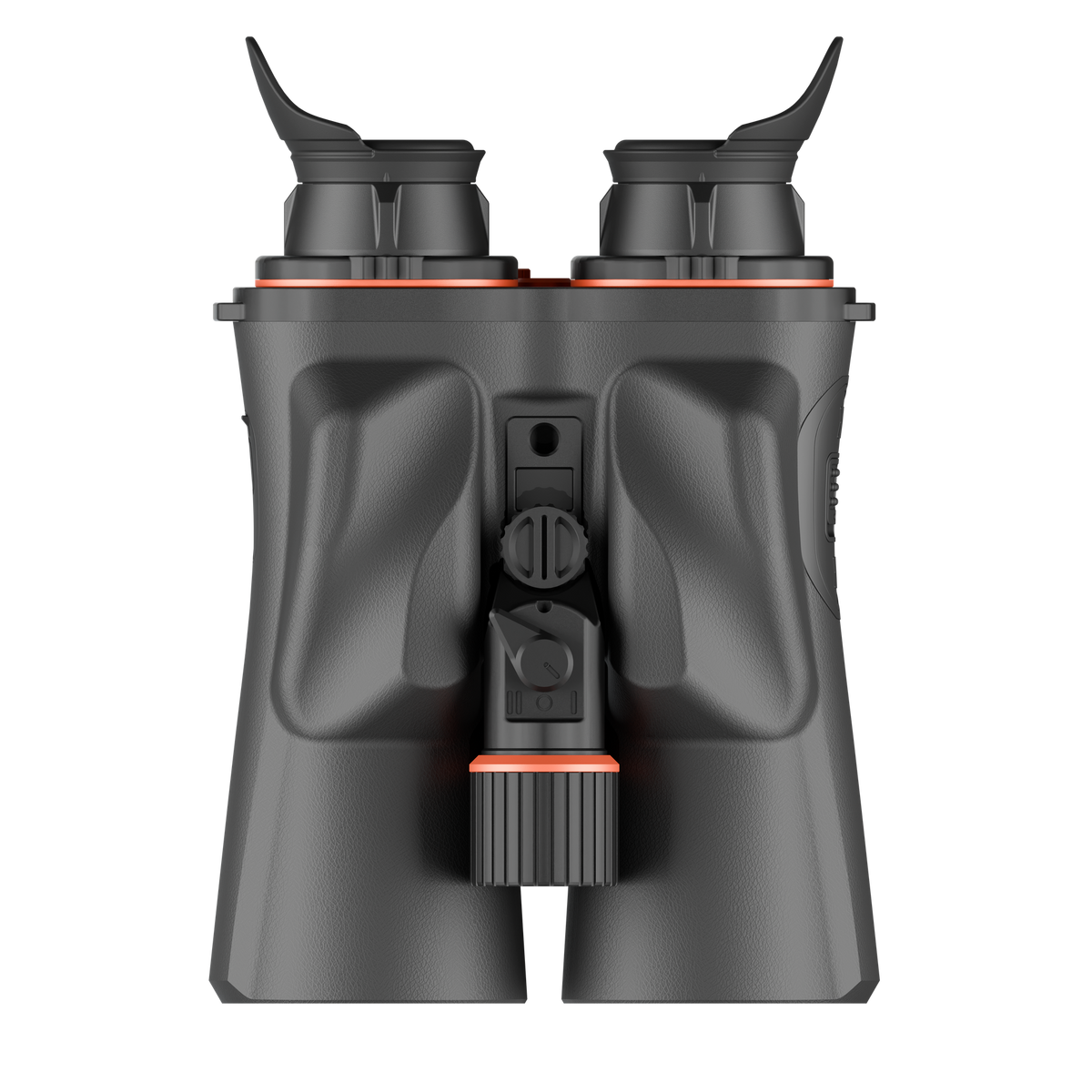

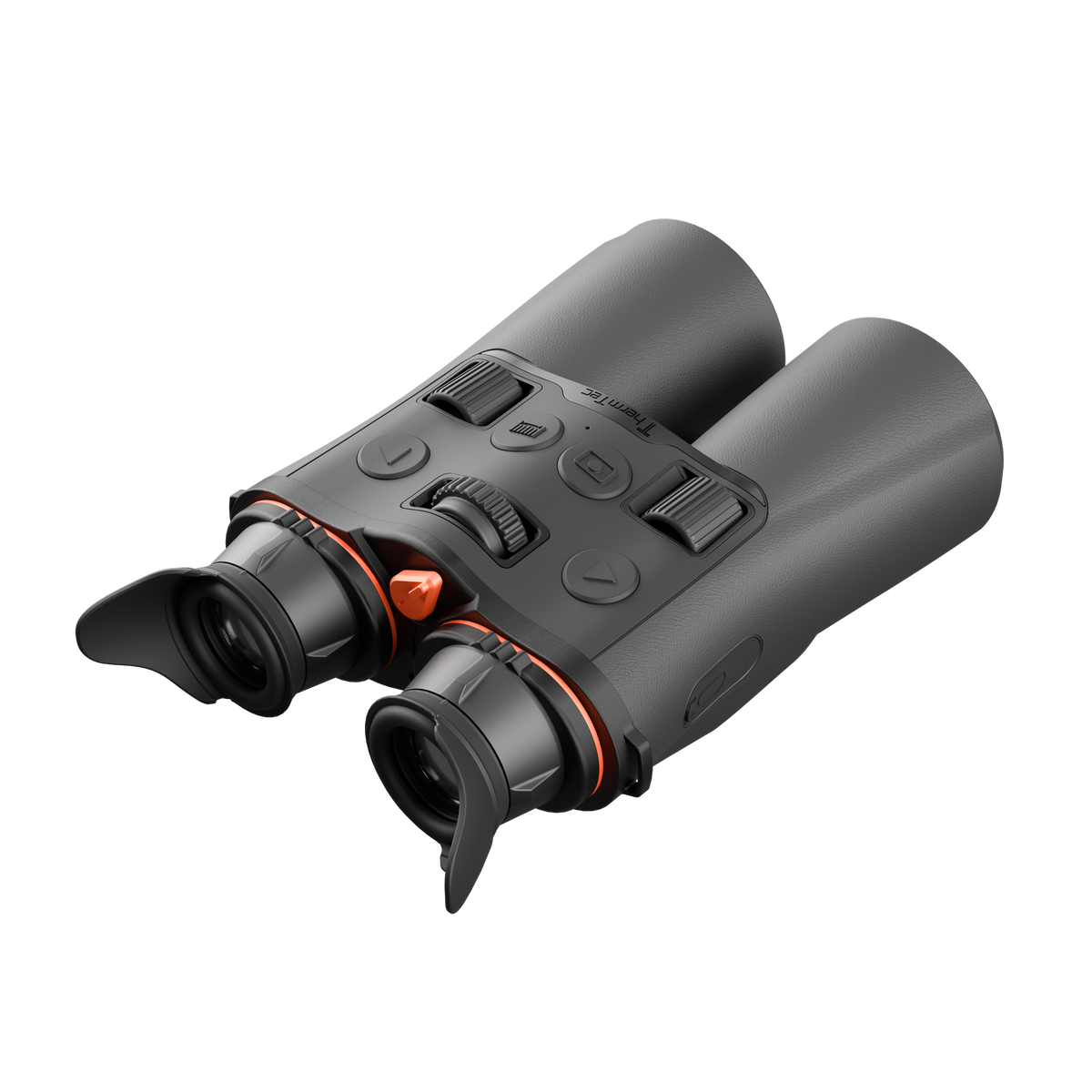

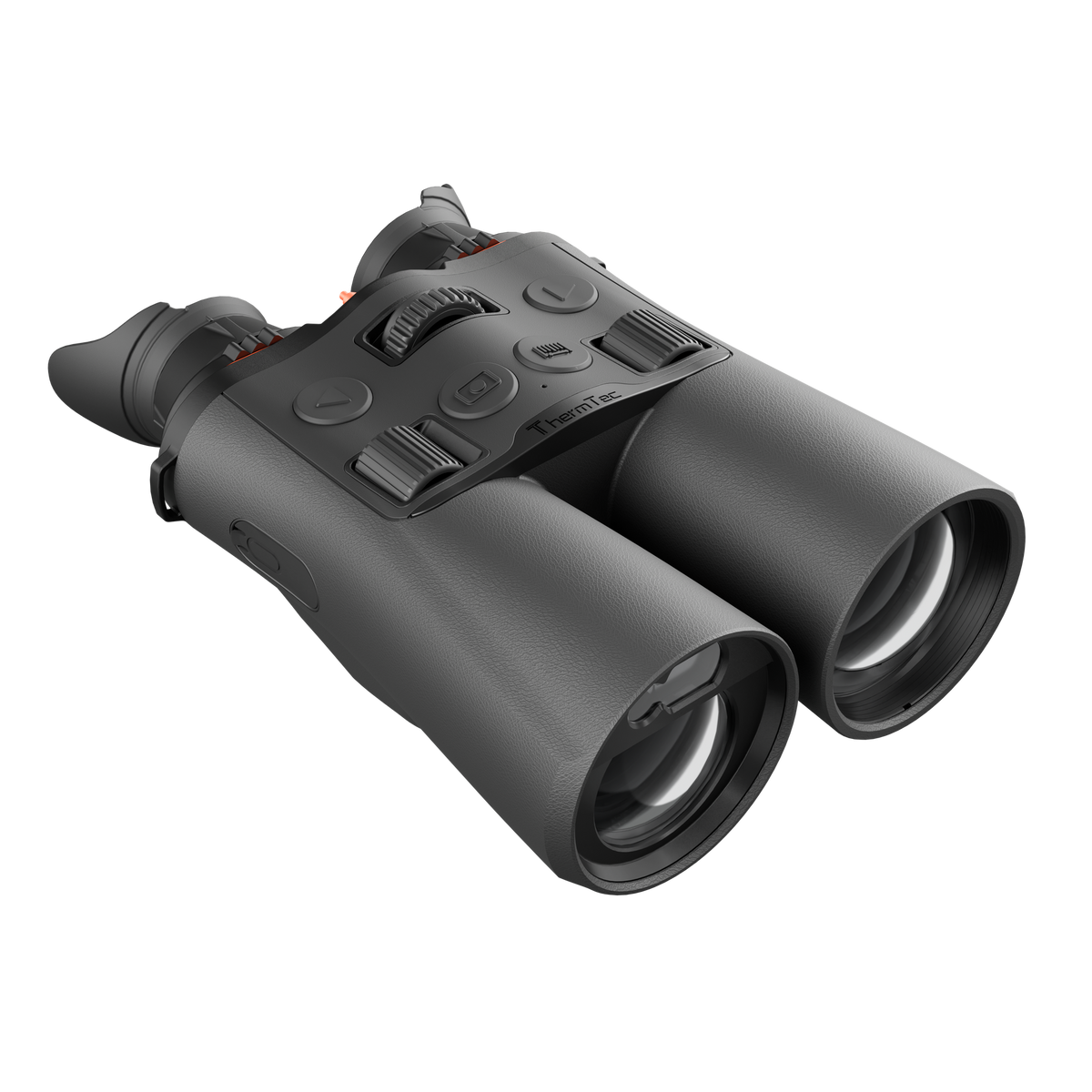

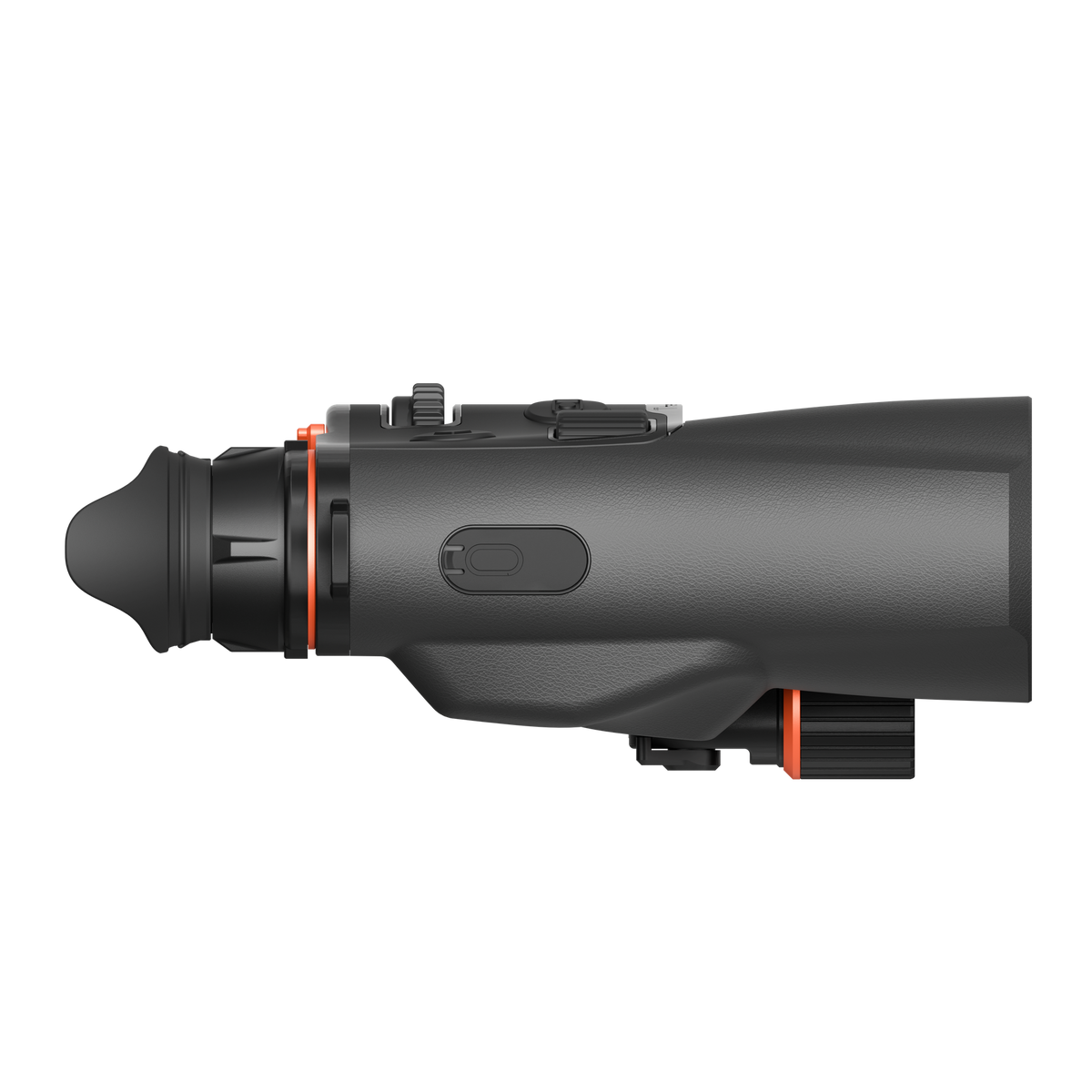

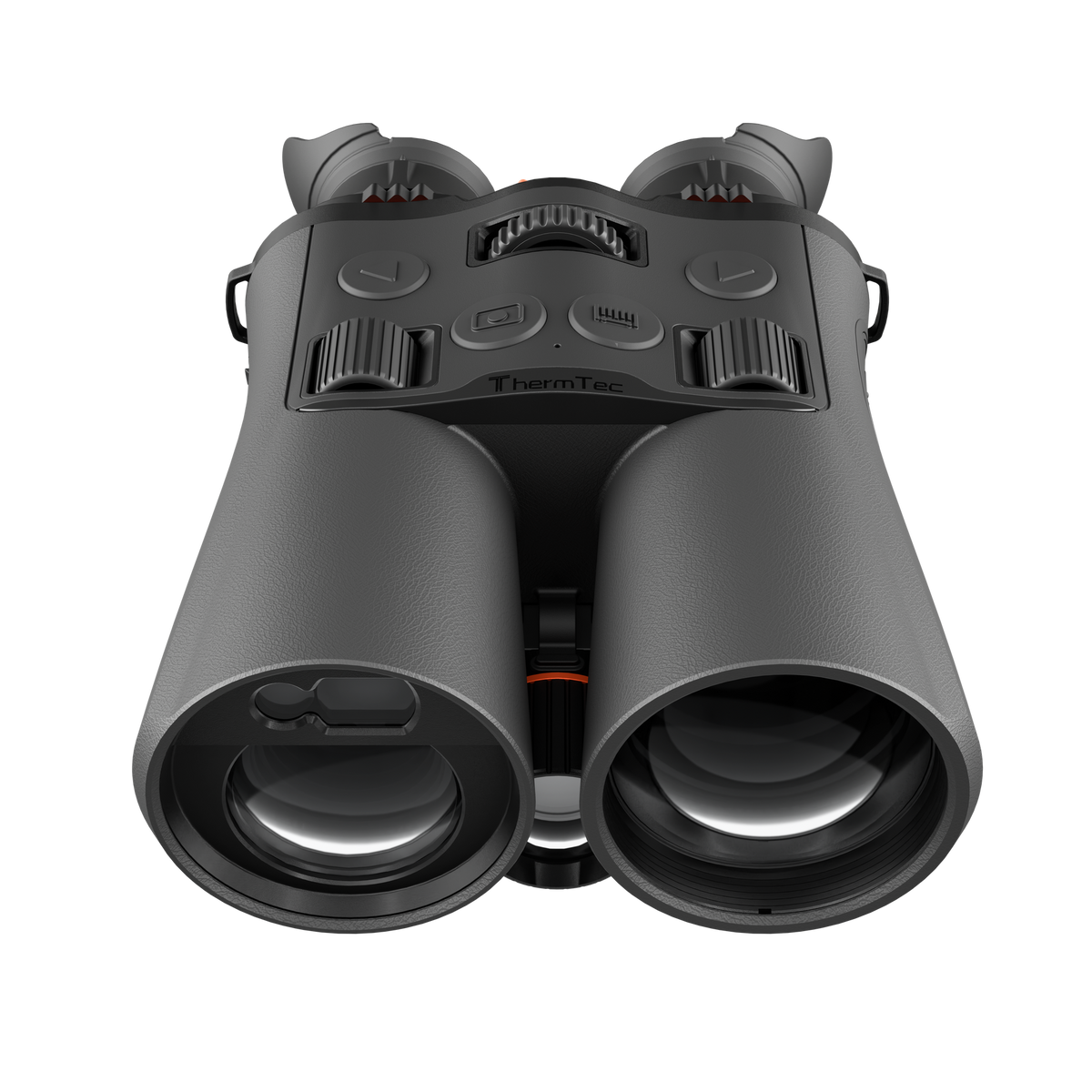

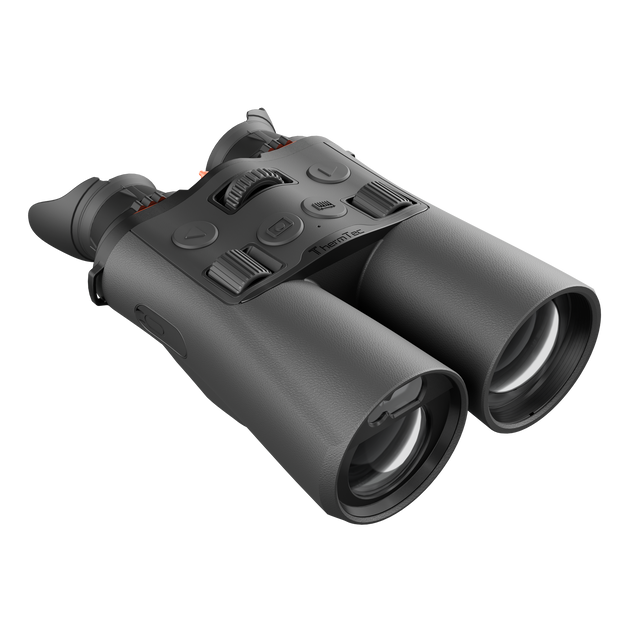

ThermTec Ventus 635L Multi-Spectrum Binoculars

$4,999.01 AUD
Tax included Shipping calculated at checkout.
View Technical Specifications

Not Available Online - Please See Your Local Stockist

Find Your Store

ThermTec Ventus 635L Multi-Spectrum Binoculars Highlights

The ThermTec Ventus 635L multi-spectrum thermal binoculars feature a 640x512 sensor, 35mm lens, 1000m rangefinder and 1800m detection range.

Description

The Ventus 635L combines a high sensitivity thermal sensor with NETD <15 mK and a 12 megapixel CMOS sensor, supported by switchable 850 nm and 940 nm IR illumination, to deliver clear and consistent imaging across day and night. ThermTec AI Calibration enhances image stability and clarity for smooth viewing in changing environments. Its balanced magnification and up to 1800 m detection range enable efficient scanning, while seamless mode switching and ergonomic control ensure stable, comfortable observation during extended use.

Key Features
  • Resolution: 640×512
  • pixel pitch: 12μm
  • NETD: ＜15mK
  • Frame Rate:50Hz
  • Lens: 35mm
  • 1600×1200 AMOLED
  • Replaceable Battery
  • LRF: 1000m
  • Detection range：1800m

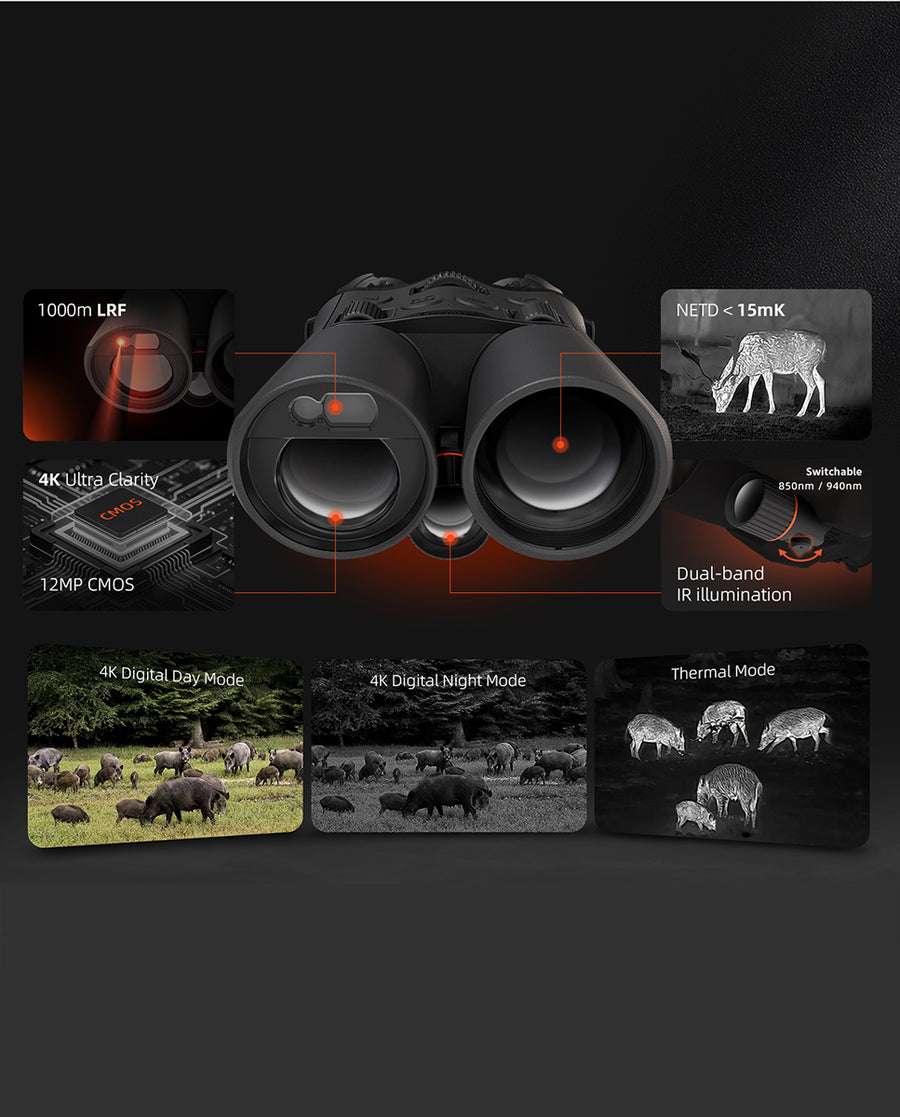

5-in-1 Integrated System

5-in-1 Integrated System

By integrating NETD <15 mK thermal sensitivity, a 4K Ultra CMOS sensor, dual band IR illumination, and precise laser rangefinder, it delivers versatile and high confidence imaging across daylight, twilight, and complete darkness, supporting reliable detection, identification, and distance awareness in complex terrain and demanding field scenarios.

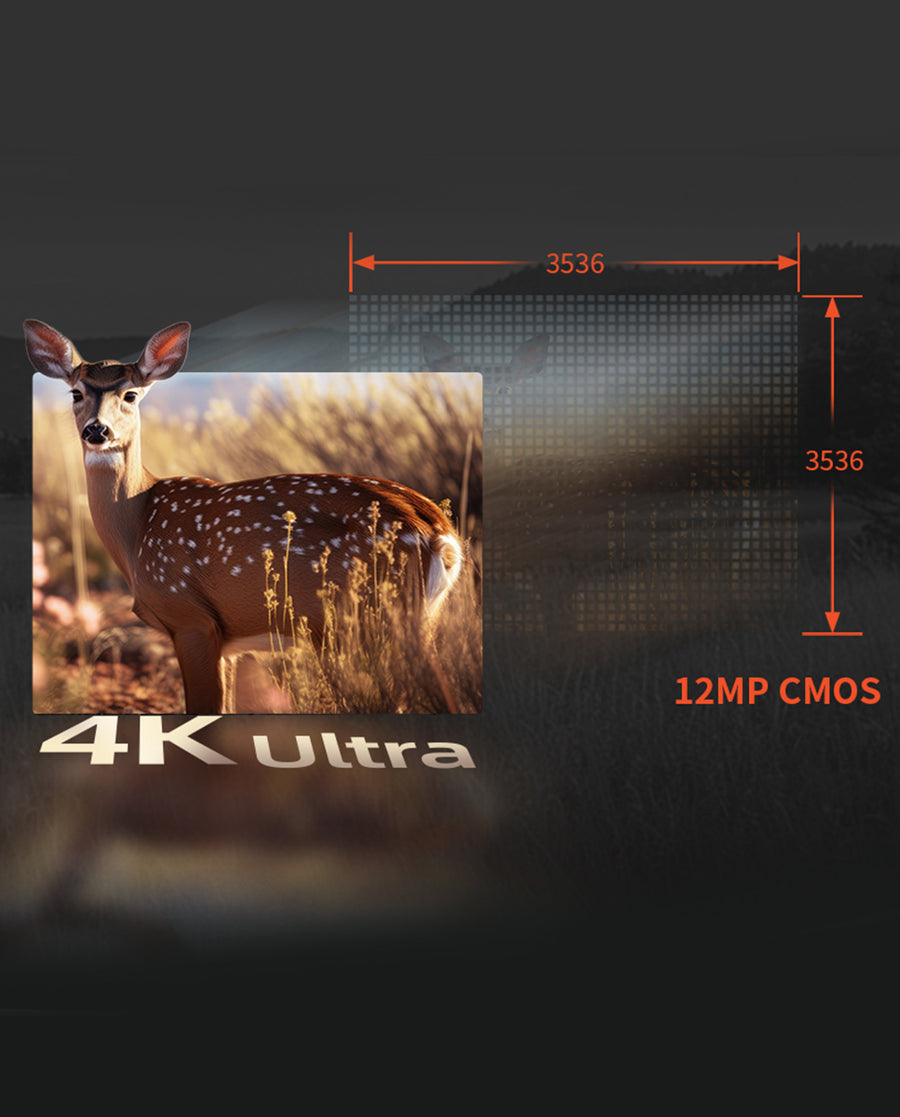

4K Ultra Clarity

4K Ultra Clarity

The advanced 4K Ultra CMOS sensor offers a 12 Megapixels resolution on a 1600x1200 0.5" OLED display, delivering an exceptional visual experience.

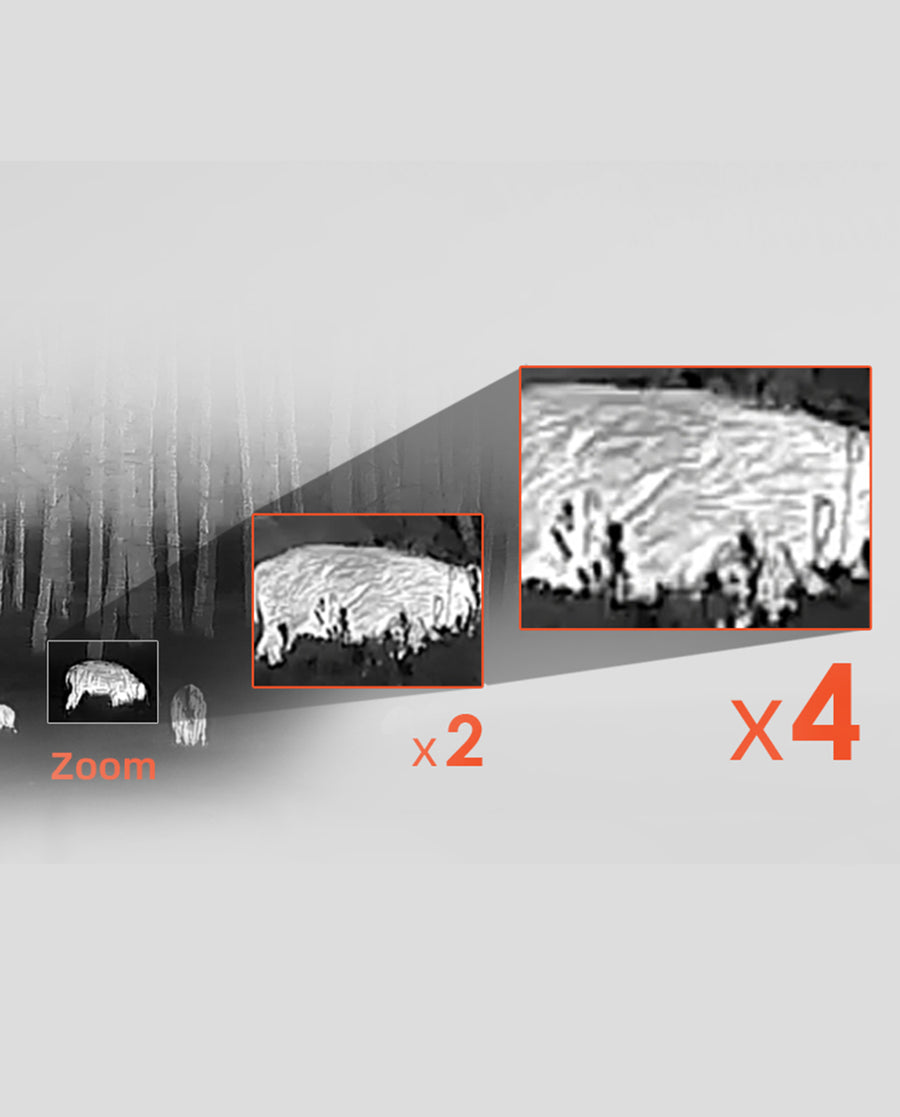

Thermal Super Resolution

Thermal Super Resolution

Combining base magnification with continuous digital zoom up to 14.8x, powered by AI-driven Thermal Super Resolution technology, it delivers ultra-detailed images with premium quality.

EIS Vision Stability

EIS Vision Stability

EIS-enhanced high-magnification CMOS imaging prevents unnecessary movements, providing steady images and reducing glare in vision.

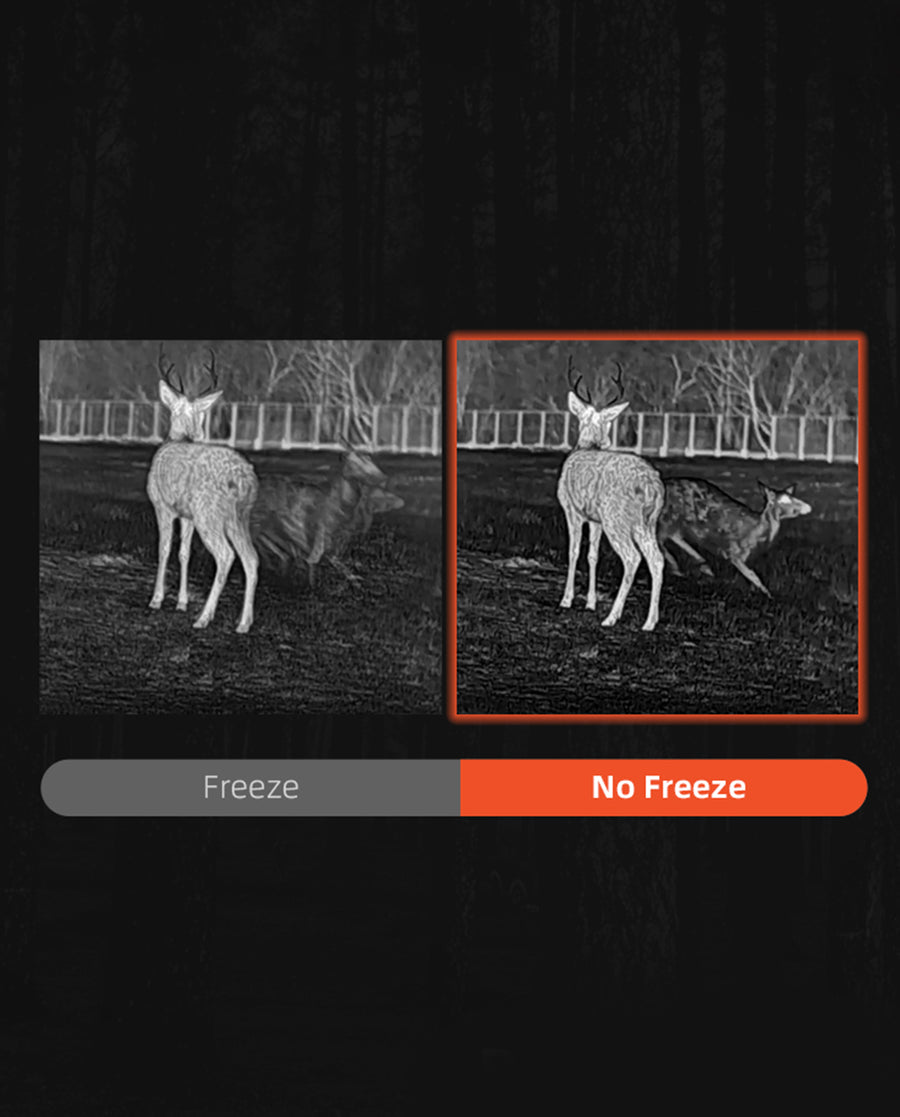

Consistently Clear & Stable Image

Consistently Clear & Stable Image

ThermTec AI Calibration reduces shutter frequency, minimizes image freezing, and ensures stable and consistent images over changing environments.

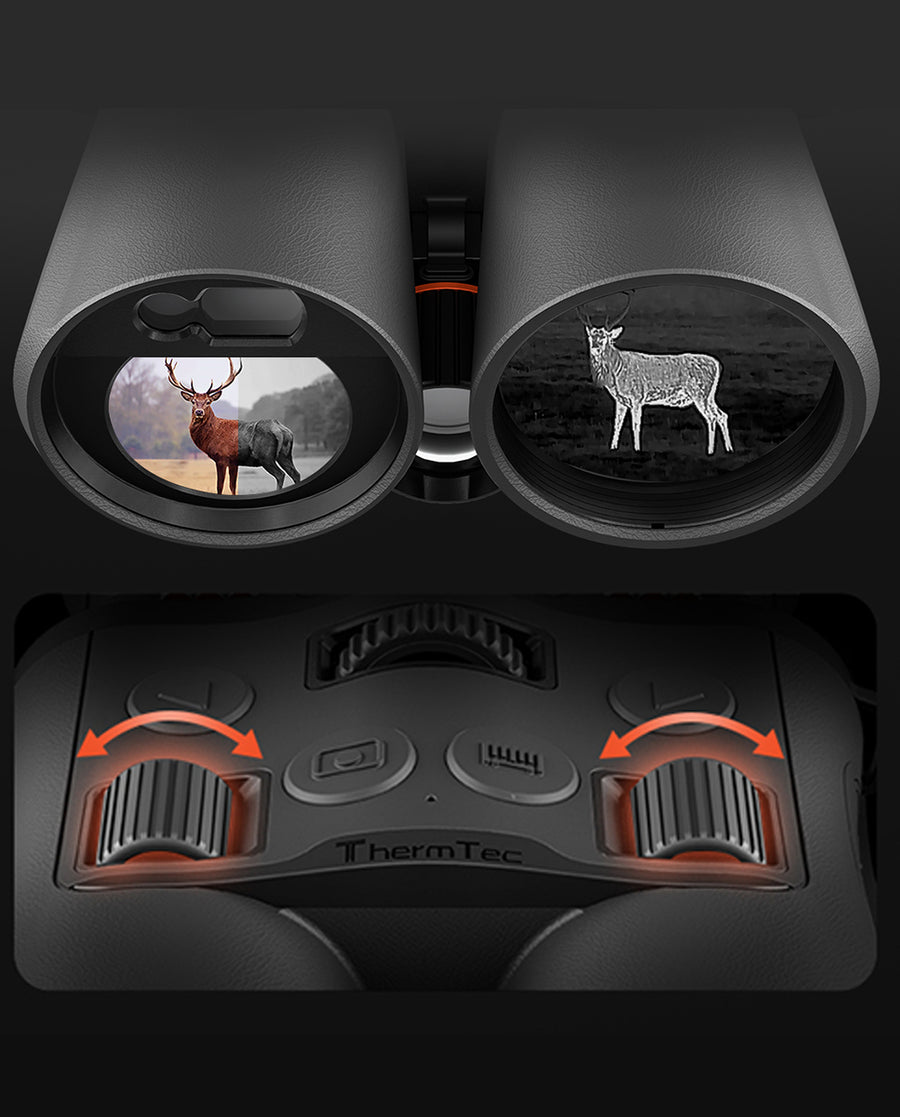

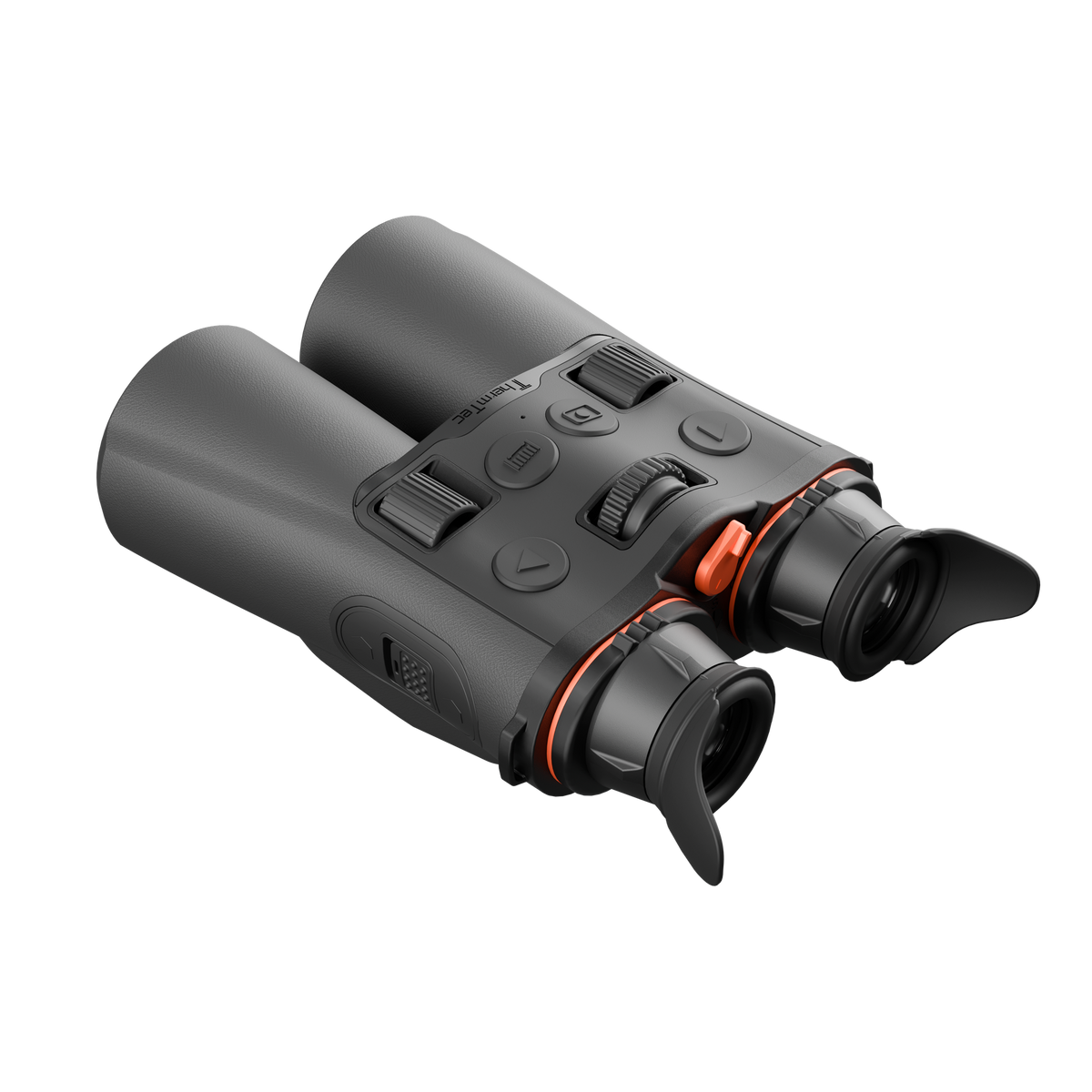

Ergonomic Operation Design

Ergonomic Operation Design

The ergonomic waist and hand support design enable dual focus wheel control with one hand, allowing for easy switching between hands effortlessly.

Compare This Range

SpecificationThermTec Ventus 635L Multi-Spectrum Binoculars ThermTec Ventus 335L Multi-Spectrum BinocularsThermTec Ventus 650L Multi-Spectrum Binoculars
Thermal Resolution640×512384×288640×512
Pixel pitch12μm12μm12μm
NETD<15mK@300K<15mK@300K<15mK@300K
Spectral range8-14μm8-14μm8-14μm
Thermal Objective lens35mm/F0.935mm/F0.850mm/F1.0
Thermal Field of View/m@100m12.5°×10° / 21.9×17.67.5°×5.6° / 13.2×9.98.8°×7.0° / 15.4×12.3
Frame rate50Hz50Hz50Hz
Thermal Magnification2.6X-10.4X(4X)4.3X-17.2X(4X)3.7X-14.8X(4X)
Detection range1800m1800m2600m
Optical Resolution3536x3536 2μm3840x2160 2μm3536x3536 2μm
Optical Field of view/m@100m8.1°×8.1° / 14.14×14.148.8°×4.9° / 15.4×8.68.1°×8.1° / 14.14×14.14
Optical Objective lens50mm/F1.450mm/F1.450mm/F1.4
IR illuminator wavelength850nm/940nm switchable850nm/940nm switchable850nm/940nm switchable
Viewing range at night850nm:400m/940nm:350m850nm:400m/940nm:350m850nm:400m/940nm:350m
Optical Magnification4X-24X(6X)5X-30X(6X)4X-24X(6X)
TypeAMOLEDAMOLEDAMOLED
Image Display Resolution1600×12001600×12001600×1200
Display size0.5 inch0.5 inch0.5 inch
Color palette666
Eye relief20mm20mm20mm
Exit pupil8mm8mm8mm
Diopter±5D±5D±5D
Interpupillary adjustment range60mm to 72mm60mm to 72mm60mm to 72mm
Image modeForest/RainyForest/RainyForest/Rainy
TSR algorithmYes—Yes
LRF Safety classClass 1Class 1Class 1
LRF Wavelength905nm905nm905nm
LRF Range1000m1000m1000m
LRF Accuracy±1m±1m±1m
Photo/Video playbackYesYesYes
Audio recordingYesYesYes
AzimuthYesYesYes
Digital magnetic compassYesYesYes
HotspotYesYesYes
LanguageMultiple-languageMultiple-languageMultiple-language
Storage64GB EMMC64GB EMMC64GB EMMC
PIPYesYesYes
Heat trackYesYesYes
EISYesYesYes
Local albumYesYesYes
OSD recordingYesYesYes
Burn preventionYesYesYes
Internal batteryReplaceable Li-ion battery (18650*2)Replaceable Li-ion battery (18650*2)Replaceable Li-ion battery (18650*2)
Battery life6h7h6h
Working temperature-20℃-+50℃-20℃-+50℃-20℃-+50℃
Protection levelIP67IP67IP67
Weight825g825g833g
Size164(L)x127.6(W)x73(H)mm164(L)x127.6(W)x73(H)mm164(L)x127.6(W)x73(H)mm
Mounting adapter1/4-20-UNC1/4-20-UNC1/4-20-UNC
