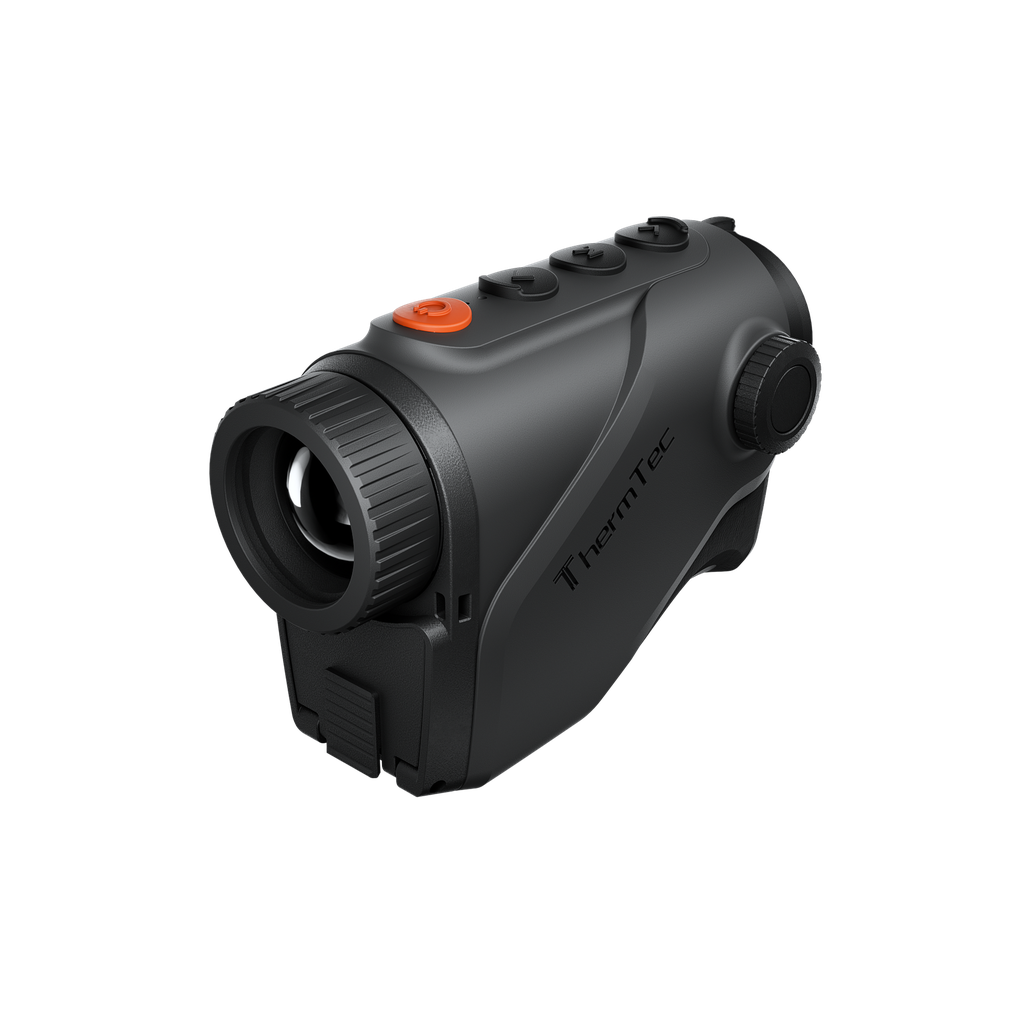

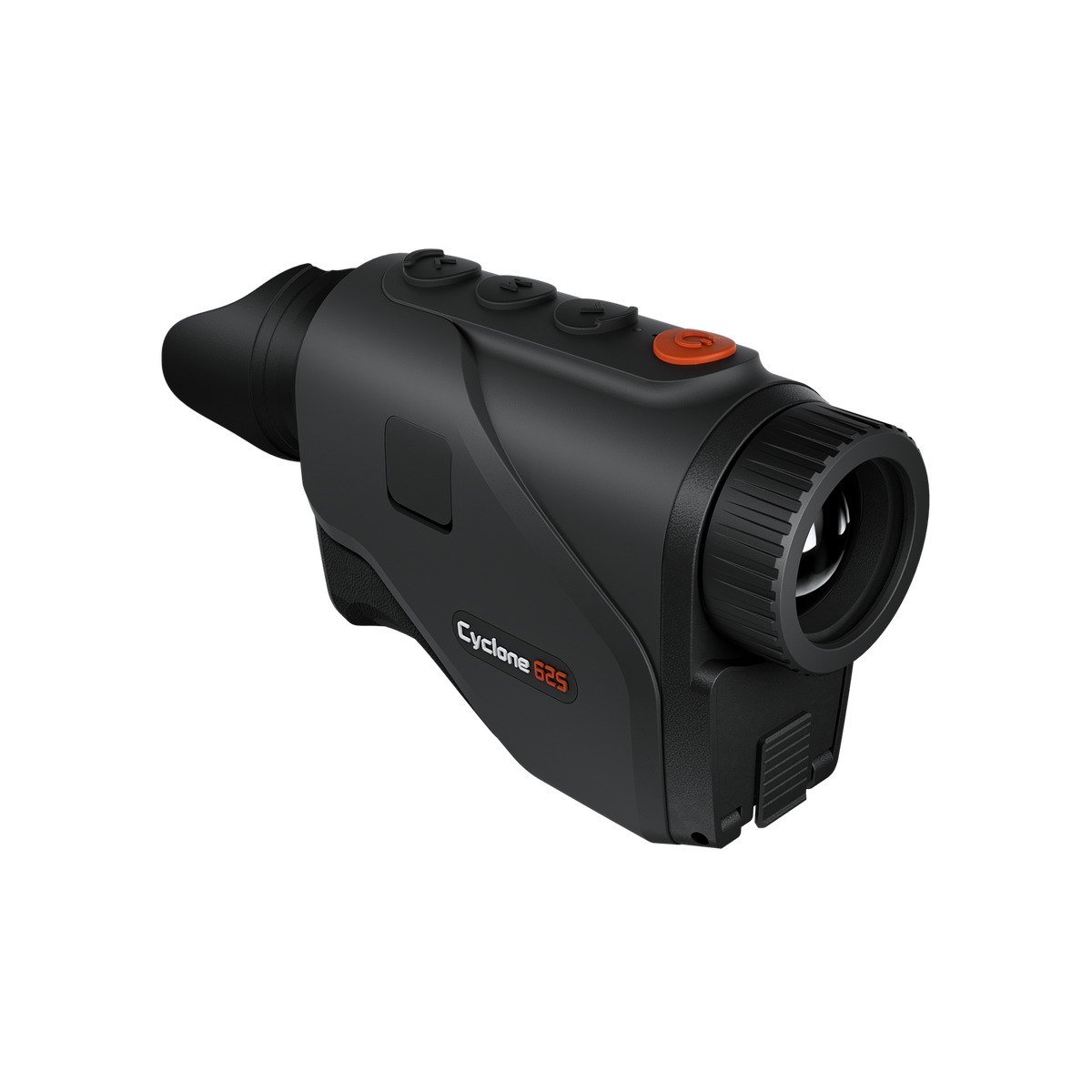

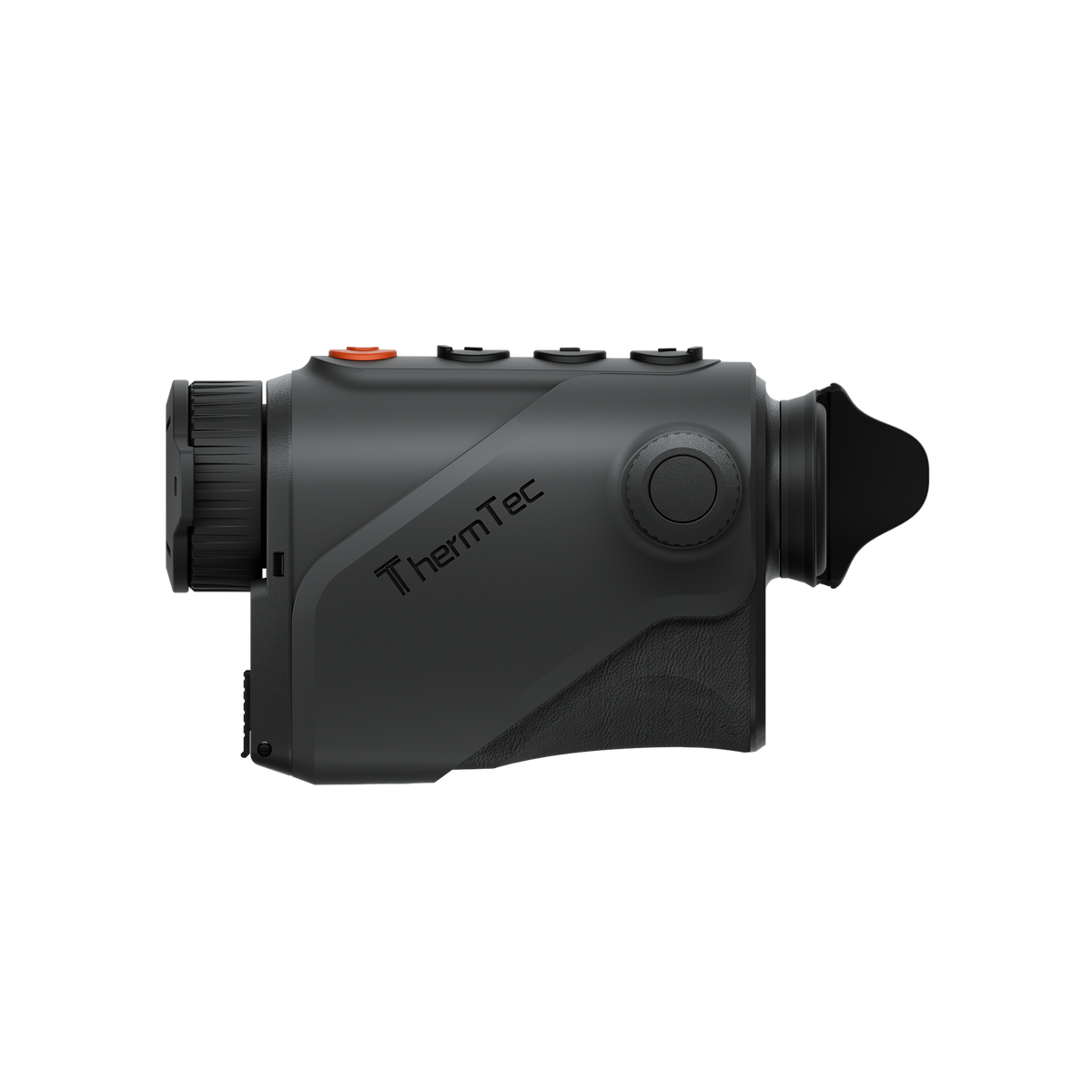

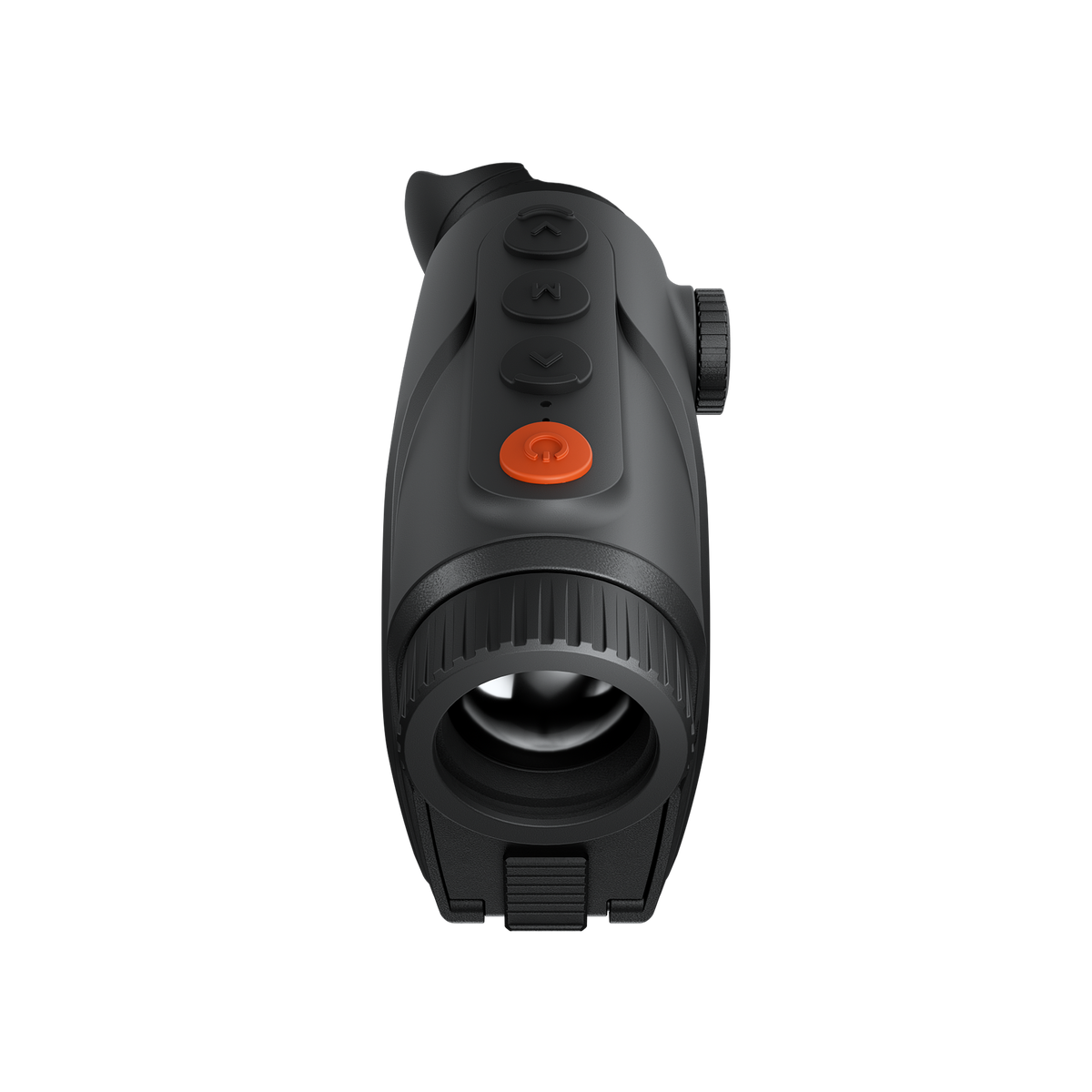

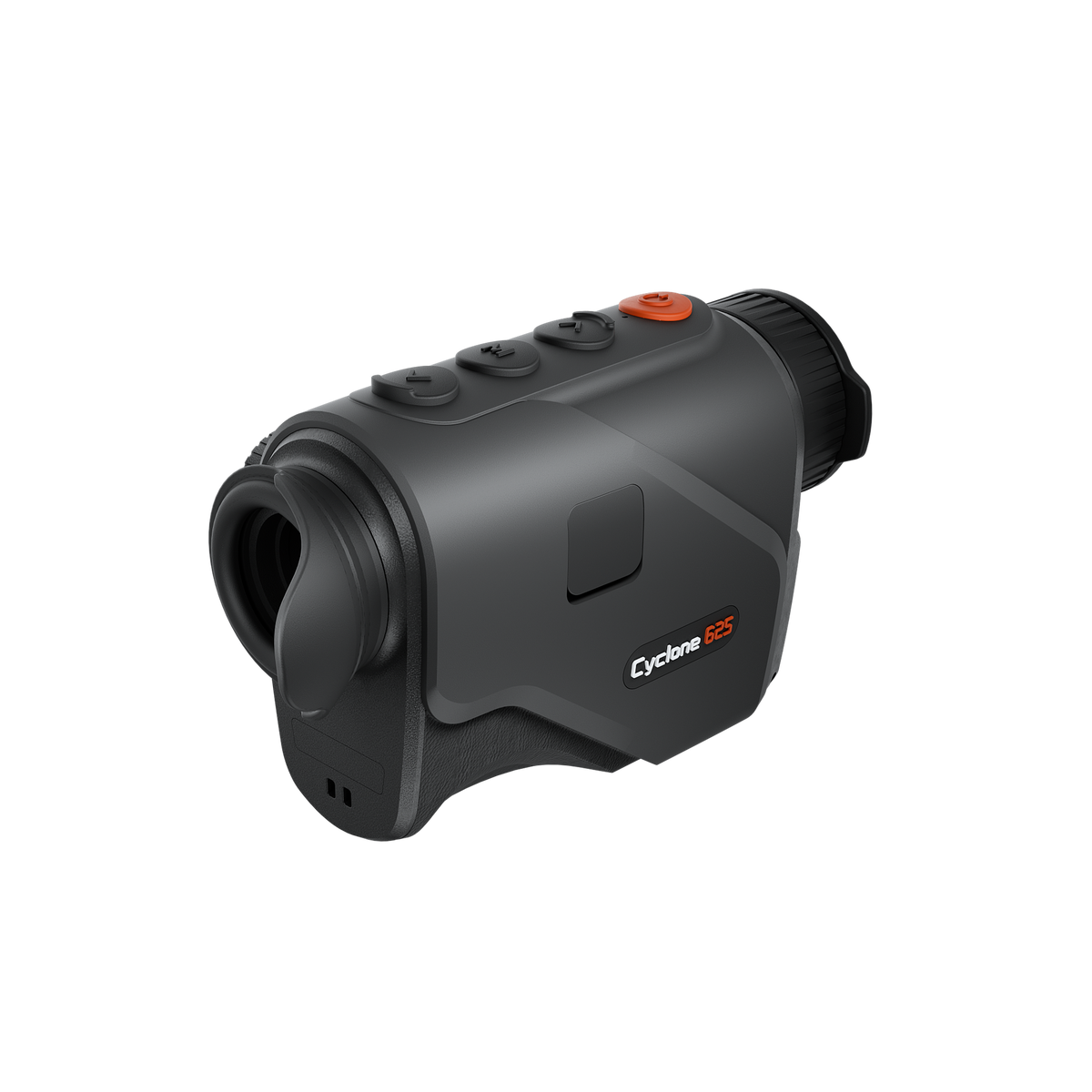

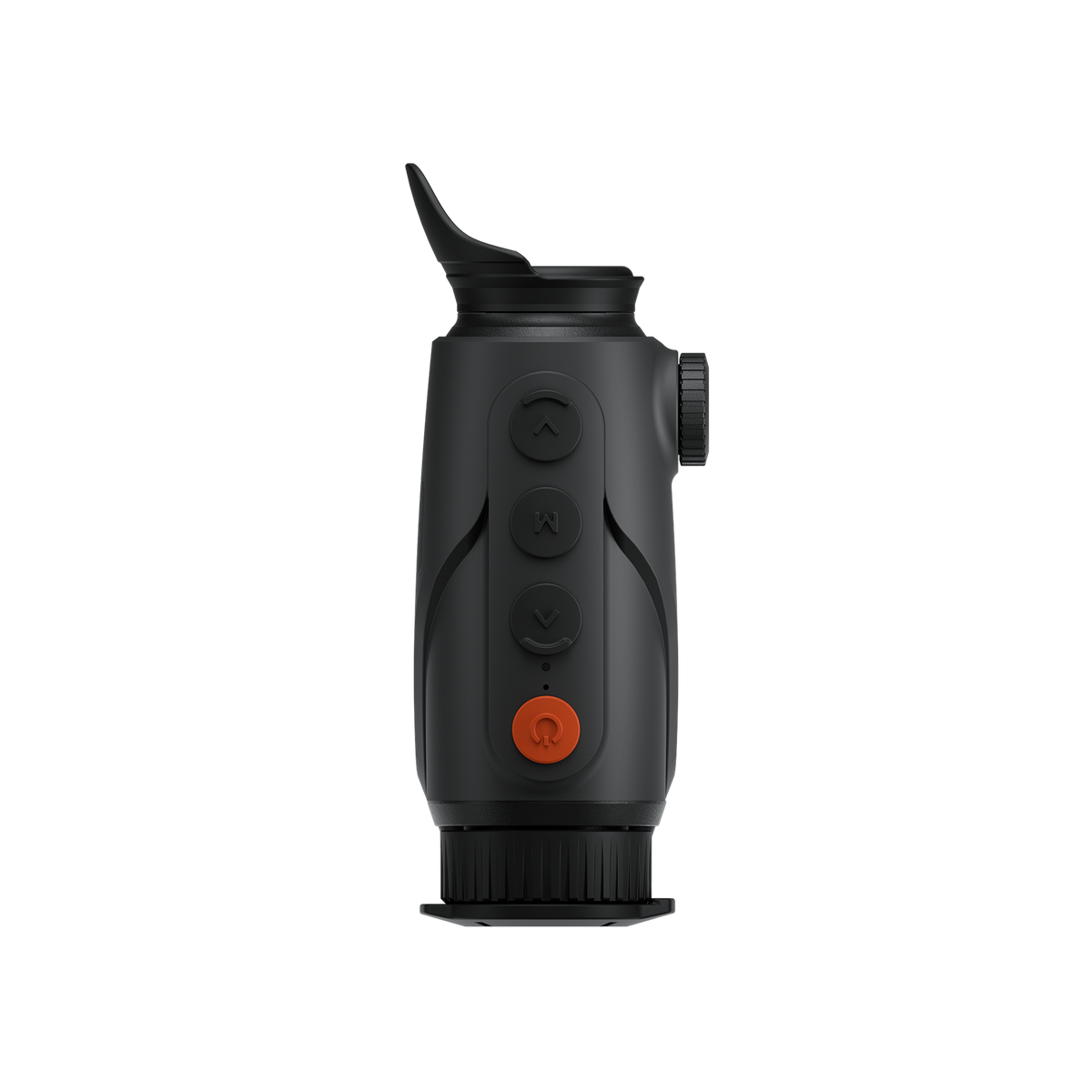

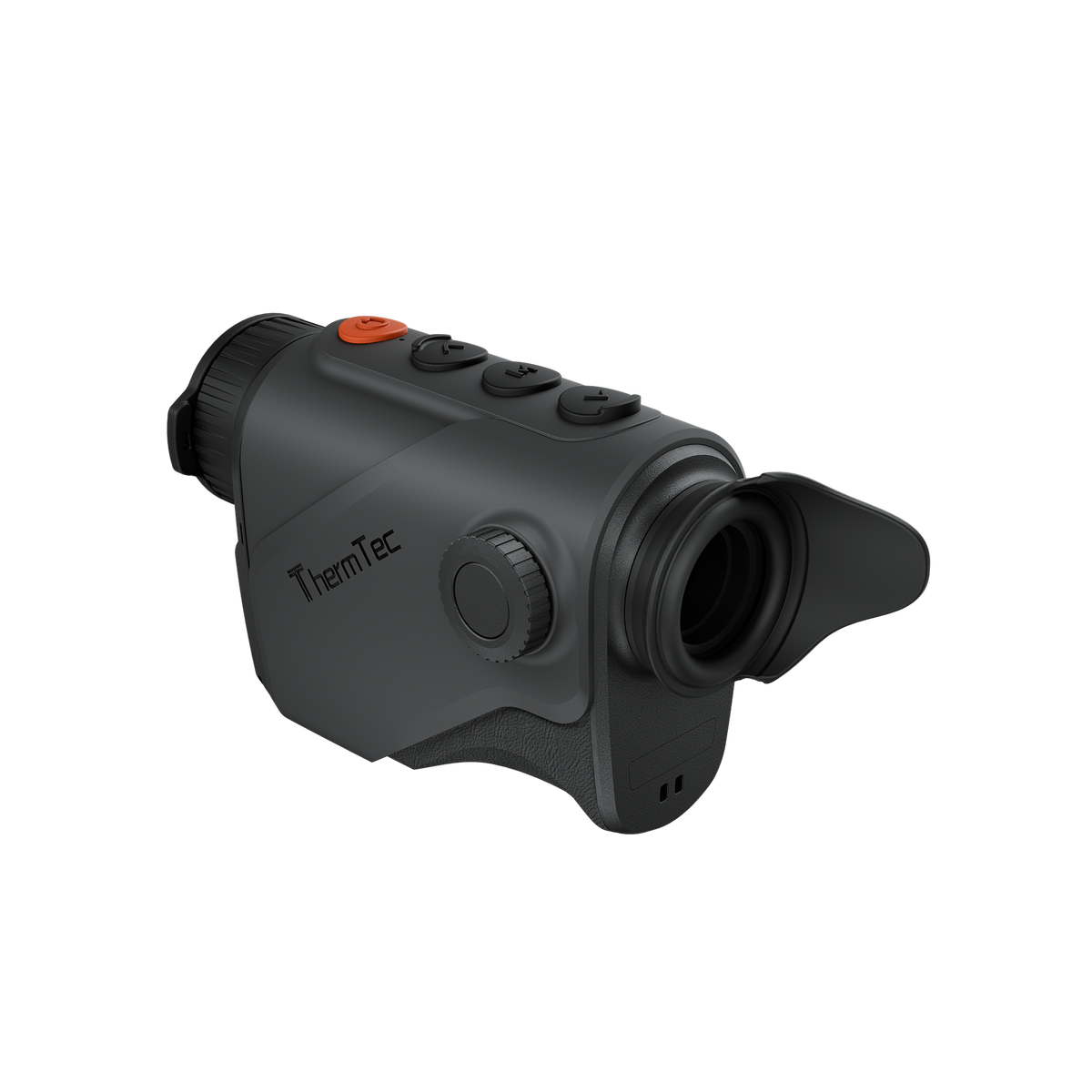

ThermTec Cyclone 625 Thermal Monocular
Not Available Online - Please See Your Local Stockist
Find Your StoreThermTec Cyclone 625 Thermal Monocular Highlights
The ThermTec Cyclone 625 thermal monocular delivers 640x512 resolution, detection range up to 1300m and an IP67 waterproof rating. Buy online at Spika.
Description
Description
Cyclone 625 is a lightweight handheld thermal monocular built for close to mid-range observation. It features a 640×512, 12µm sensor with NETD <20mK for clear and stable imaging. With a detection range up to 1300m, it delivers reliable performance in the field. ThermTec AI Calibration enhances image stability, while multi-target ranging and fast startup support efficient operation.
Key Features
Key Features
Compare This Range
| Specification | ThermTec Cyclone 625 Thermal Monocular | ThermTec Cyclone 315 Thermal Monocular | ThermTec Cyclone 325 Thermal Monocular |
|---|---|---|---|
| Resolution | 640x512 | 384x288 | 384x288 |
| Pixel pitch | 12µm | 12µm | 12µm |
| NETD | 20mK@300k | 20mK@300k | 20mK@300k |
| Spectral range | 8-14µm | 8-14µm | 8-14µm |
| Frame rate | 50Hz | 50Hz | 50Hz |
| Detection range | 1300m | 750m | 1300m |
| Objective lens | 25mm/F1.0 | 15mm/F1.0 | 25mm/F1.0 |
| Field of view | 17.5° x 14° | 17.5°x13.1° | 10.5° x 7.9° |
| / m @100m | 30.8x24.6 | 30.7m x 23.0m | 18.4m×13.8m |
| Magnification | 1.4x | 1.4x | 2.4x |
| Digital zoom | 1x,2x,4x | 1x,2x,4x | 1x,2x,4x |
| Eye relief | 20mm | 20mm | 20mm |
| Exit pupil | 6mm | 6mm | 6mm |
| Diopter | ±5D | ±5D | ±5D |
| Type | AMOLED | AMOLED | AMOLED |
| Display Resolution | 1024x768 | 1024x768 | 1024x768 |
| Display size | 0.39 inch | 0.39 inch | 0.39 inch |
| Color palette | 6 | 6 | 6 |
| Image mode | Forest/Target/Outline | Forest/Target/Outline | Forest/Target/Outline |
| Photo/video playback | Yes | Yes | Yes |
| Language | Multiple-languages | Multiple-languages | Multiple-languages |
| Inbuilt Memory | 32GB | 32GB | 32GB |
| Audio | Yes | Yes | Yes |
| Calibration | Auto/Manual | Auto/Manual | Auto/Manual |
| PIP | Yes | Yes | Yes |
| AI Distance Measurement | Yes | Yes | Yes |
| Heat Track | Yes | Yes | Yes |
| OSD Recording | Yes | Yes | Yes |
| Internal battery | Replaceable and Rechargeable Li-ion Battery (18650x1) | Replaceable and Rechargeable Li-ion Battery (18650x1) | Replaceable and Rechargeable Li-ion Battery (18650x1) |
| Battery life | 8h | 10h | 10h |
| Type-C | Battery Charge/Data transfer | Supports battery charging, data transfer | Supports battery charging, data transfer |
| Hotspot | Yes, App remote control | Yes, App remote control | Yes, App remote control |
| Working temperature | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Protection Level | IP67 | IP67 | IP67 |
| Weight | 261g (without battery) | 255g (w/o battery) | 261g (w/o battery) |
| Dimension | 136(L)×76(W)×54(H)mm | 139*76*54mm | 135*76*54mm |
| External Cable | USB cable | USB cable | USB cable |
| Other Accessories | Lens cloth, charger, battery, etc. | Non-dust cloth and etc. | Non-dust cloth and etc. |
| Burn prevention | Yes | — | — |
